414-02 Generator And Regulator Wiring Diagrams: Di4

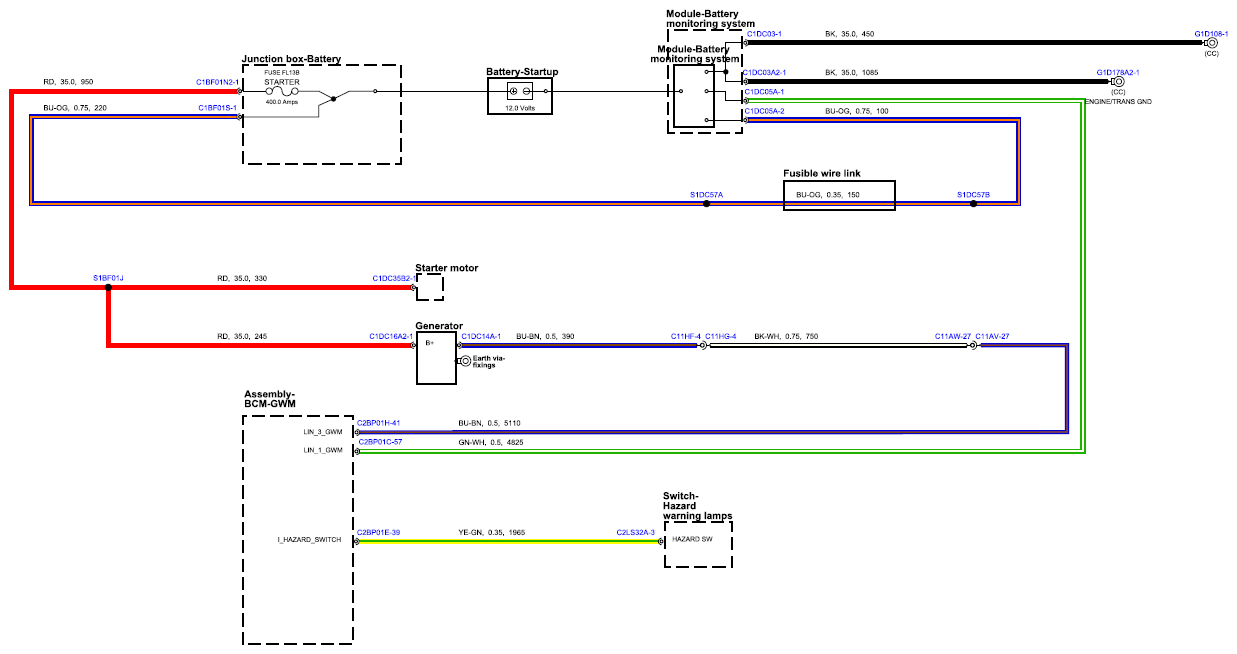

Fig 1: Generator And Regulator Circuit Diagram (DI4)

G15597584

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
