OEM Wiring Diagrams -- Range Rover EVOQUE L551
>>
414-01B Battery, Mounting And Cables (MHEV) Wiring Diagrams
>>
48V Power distribution (PI4)
48V Power distribution (PI4)

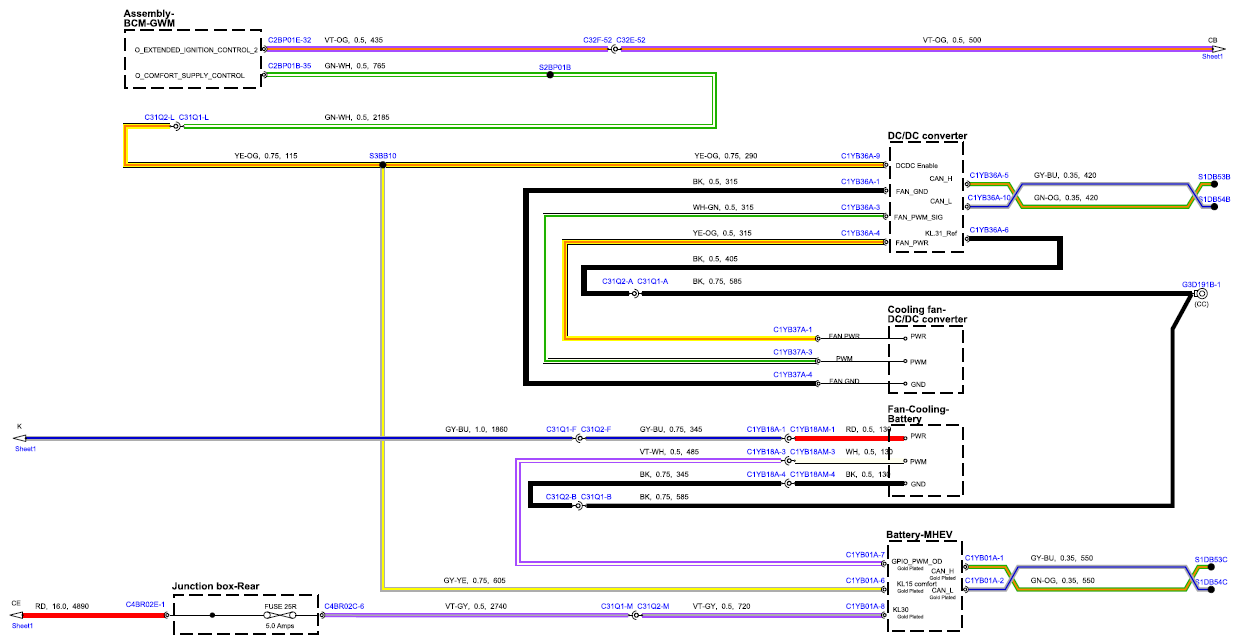

Fig 1: 48V Power Distribution (PI4) Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

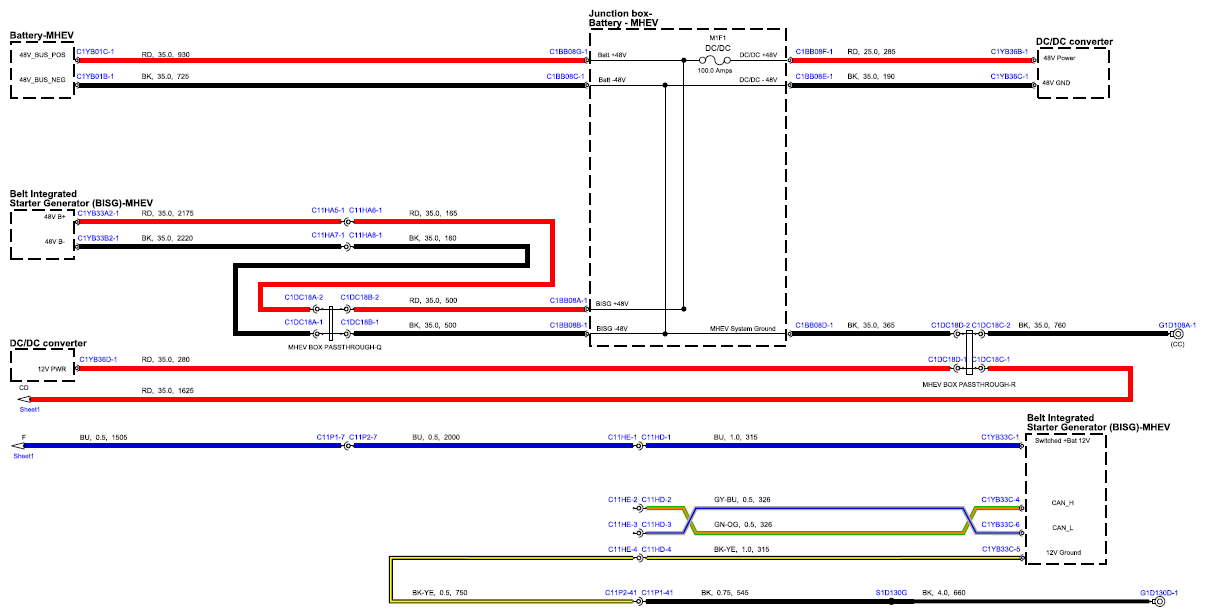

Fig 2: 48V Power Distribution (PI4) Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

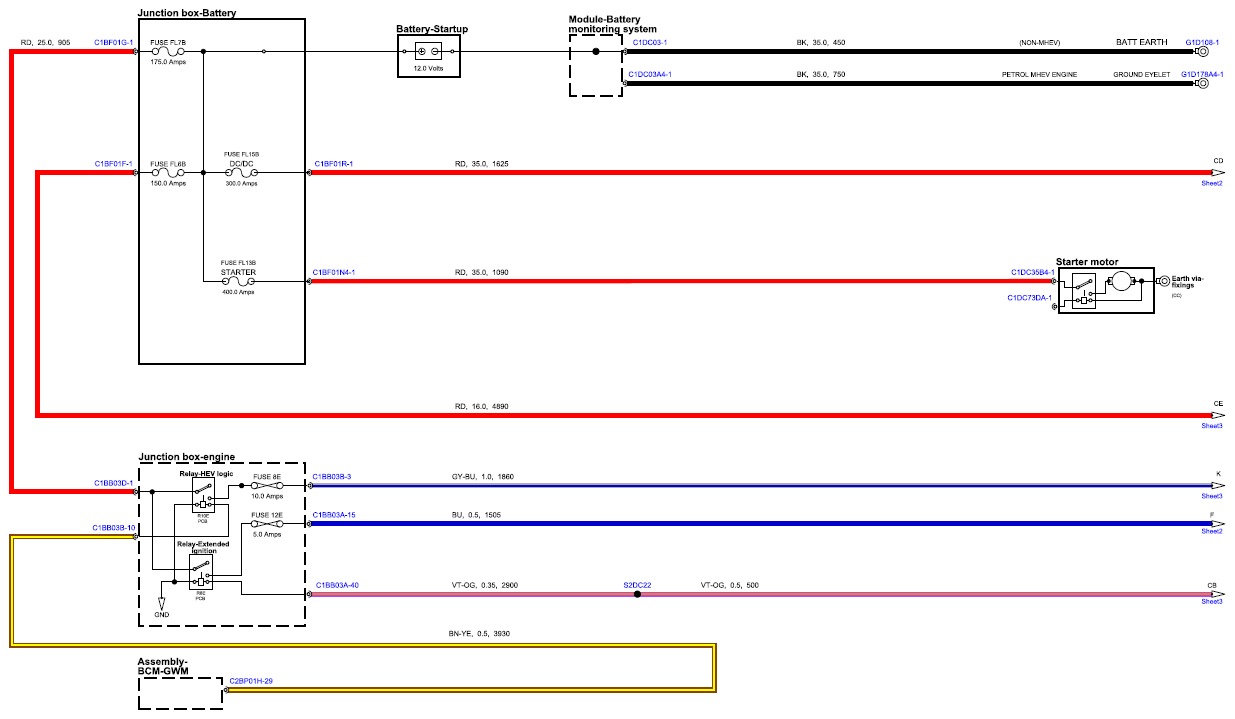

Fig 3: 48V Power Distribution (PI4) Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
