OEM Wiring Diagrams -- Range Rover EVOQUE L551
>>
414-01 Battery, Mounting And Cables Wiring Diagrams
>>
Rear junction box
Rear junction box

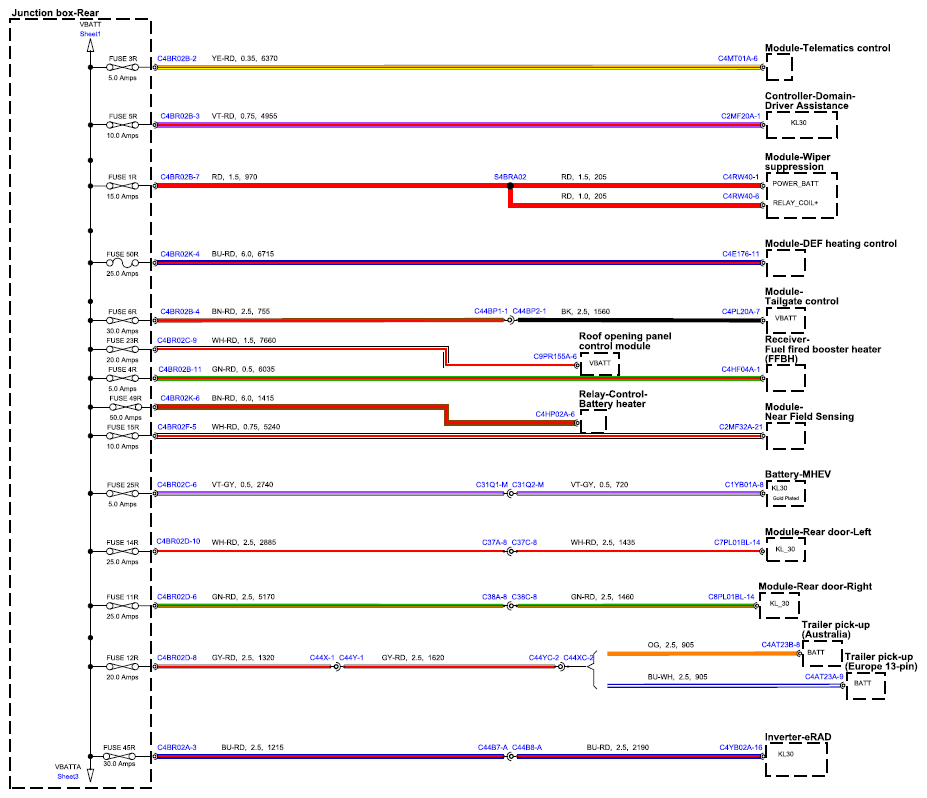

Fig 1: Rear Junction Box Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

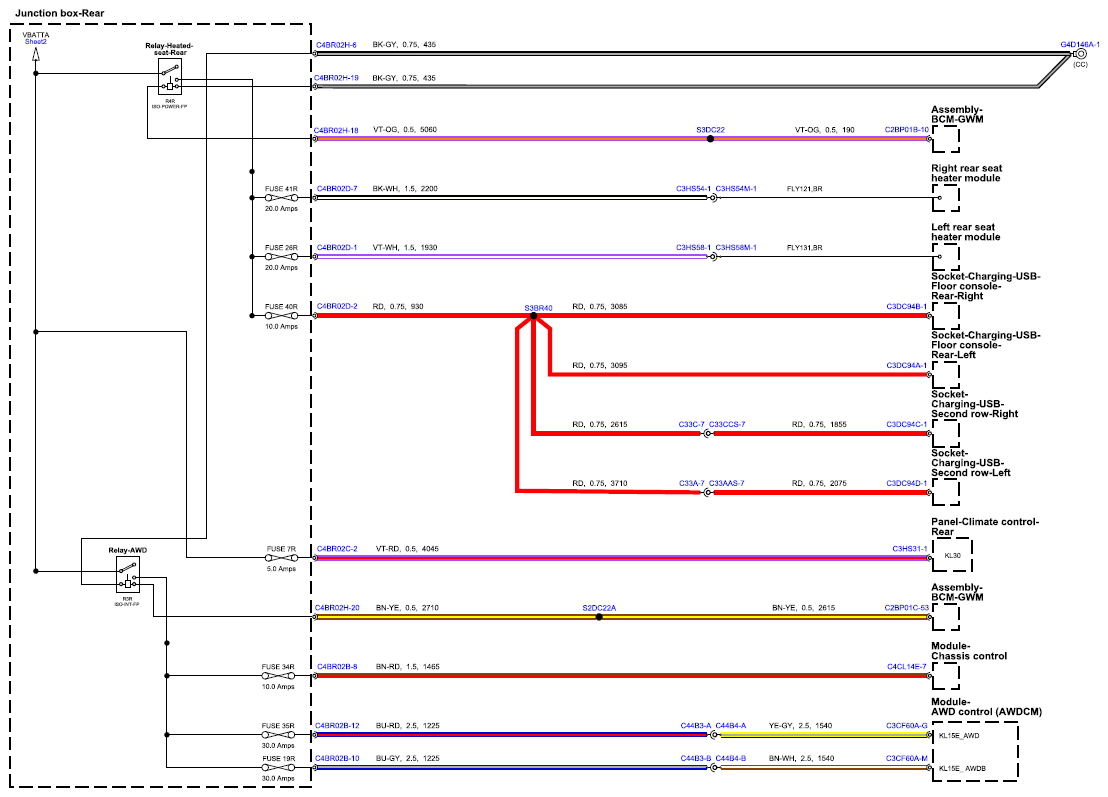

Fig 2: Rear Junction Box Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

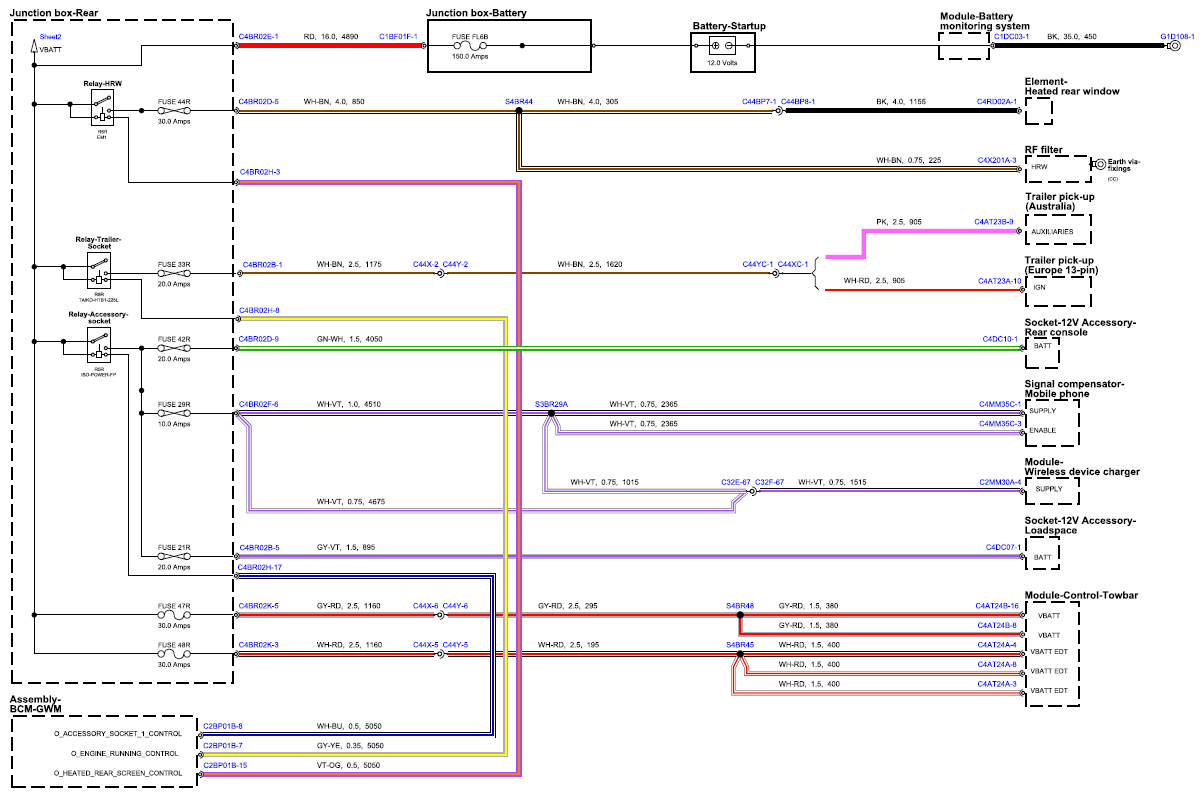

Fig 3: Rear Junction Box Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
