Engine junction box - PI4

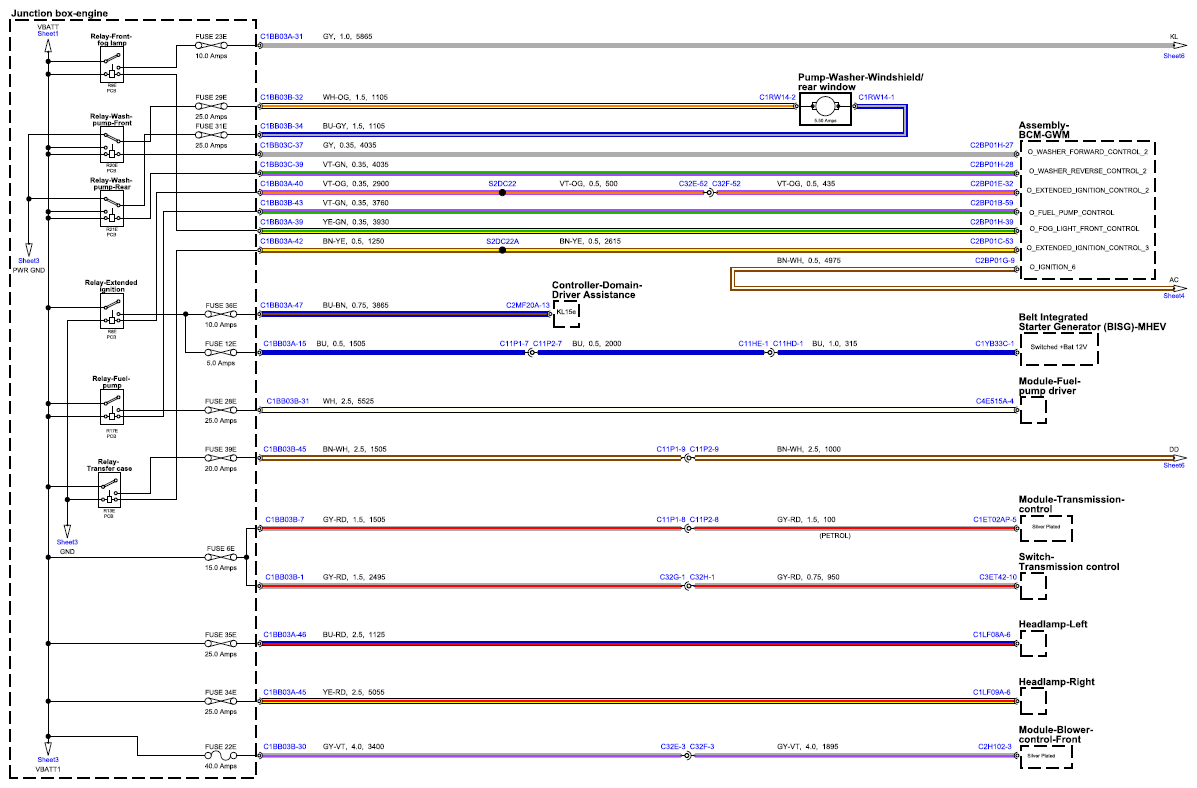

Fig 1: Engine Junction Box Circuit Diagram - PI4 (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

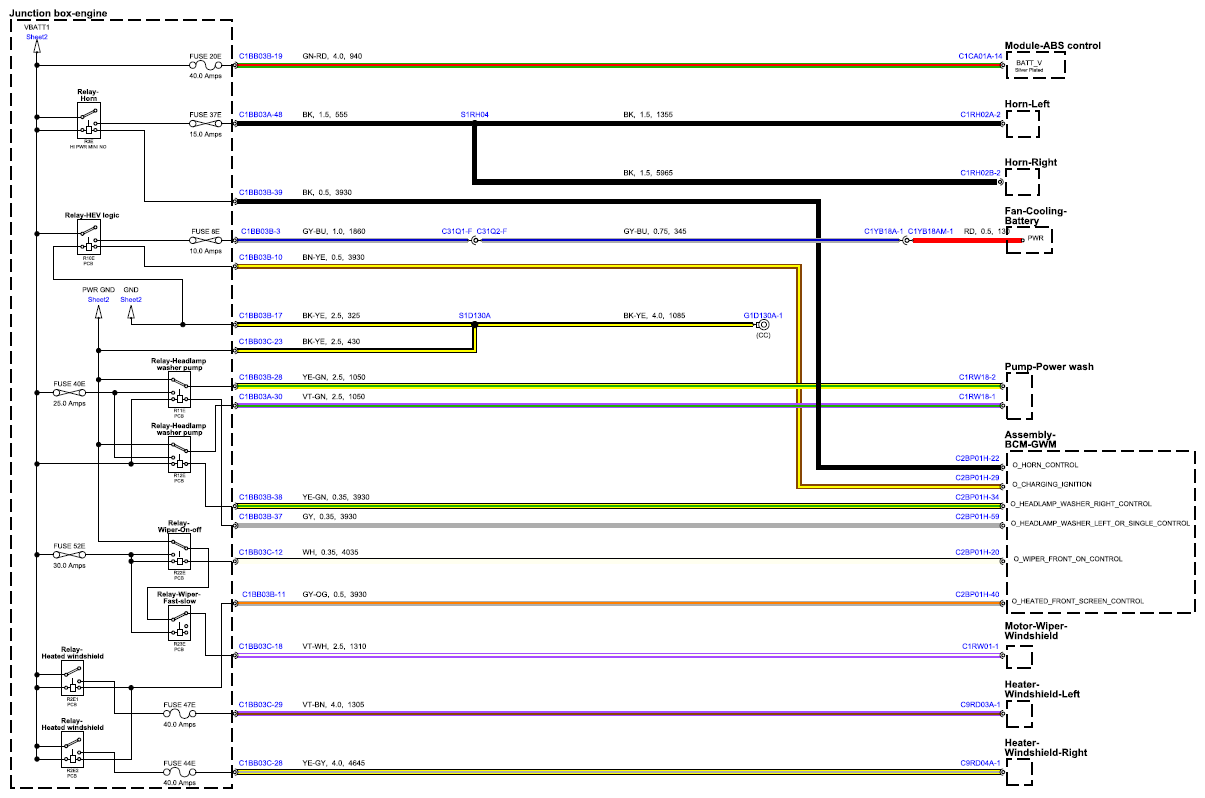

Fig 2: Engine Junction Box Circuit Diagram - PI4 (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

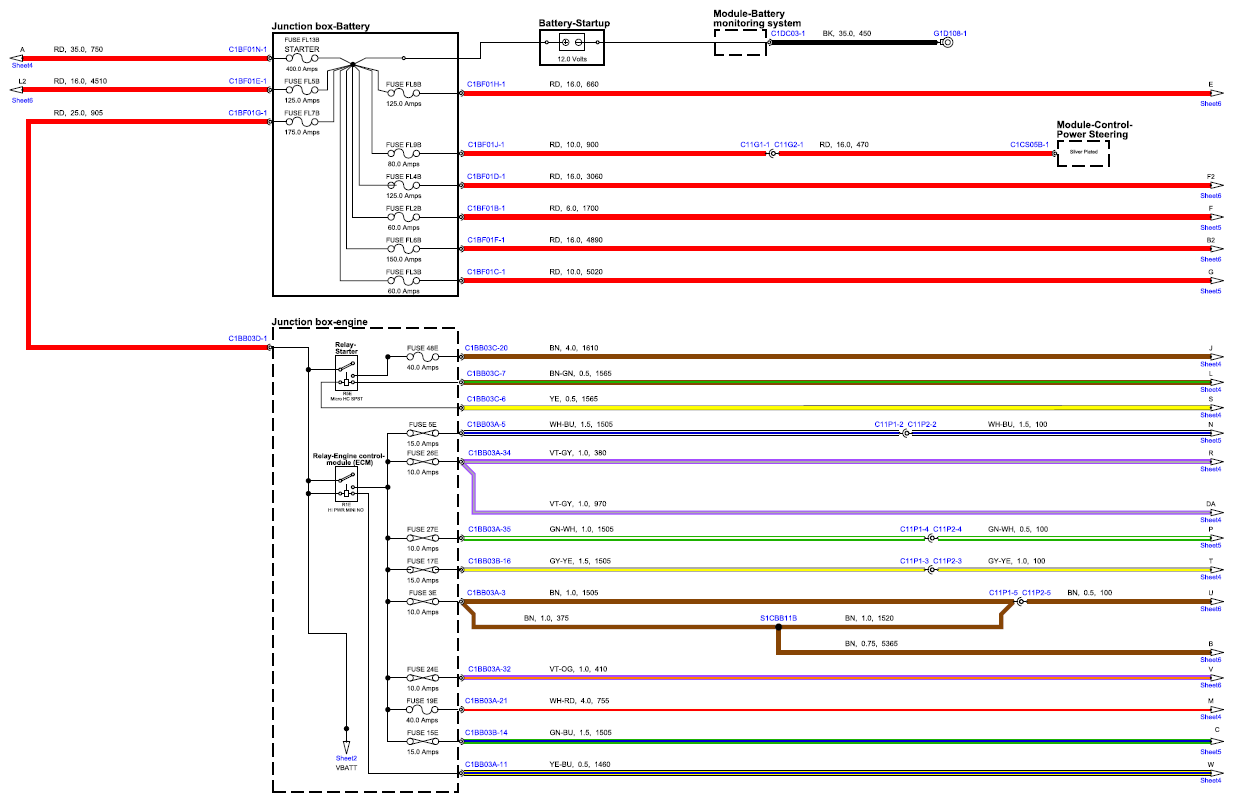

Fig 3: Engine Junction Box Circuit Diagram - PI4 (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

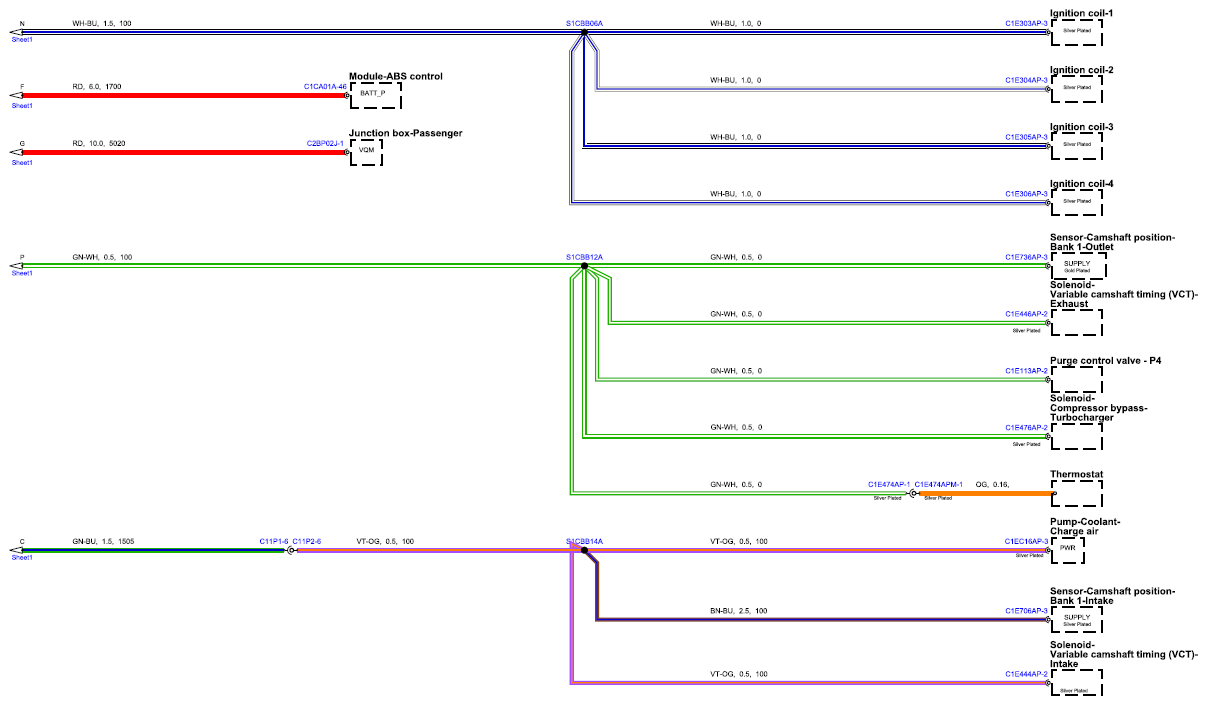

Fig 4: Engine Junction Box Circuit Diagram - PI4 (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

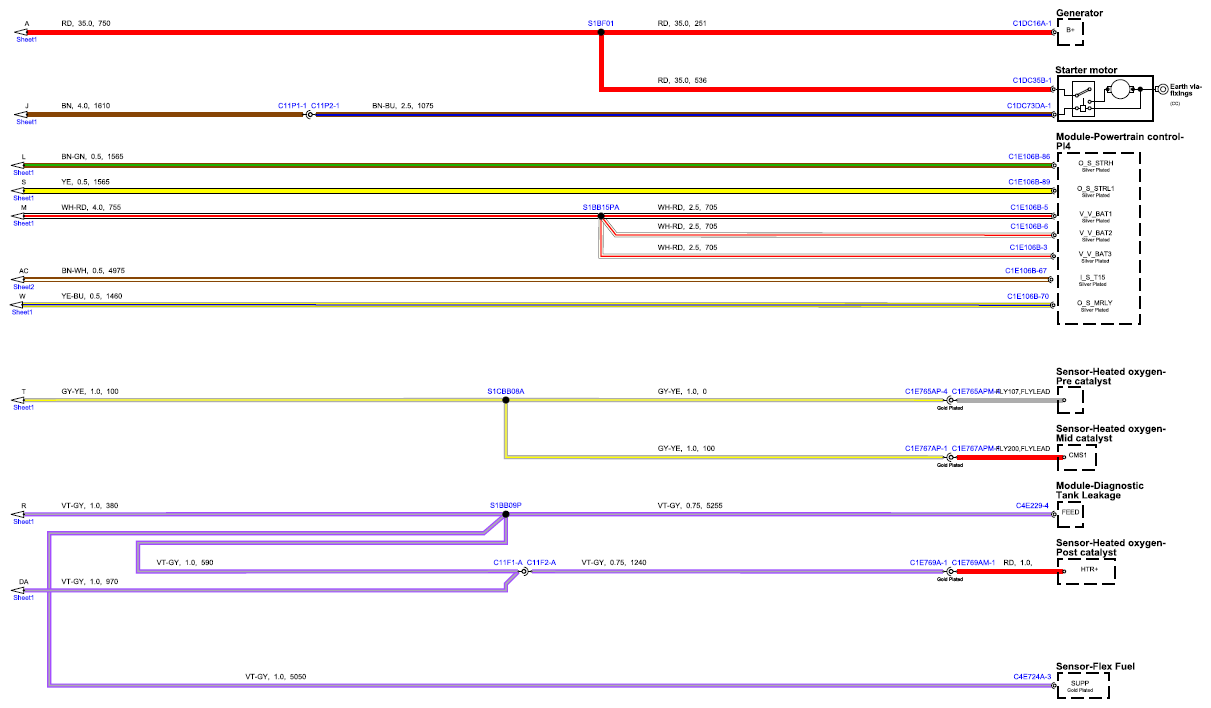

Fig 5: Engine Junction Box Circuit Diagram - PI4 (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

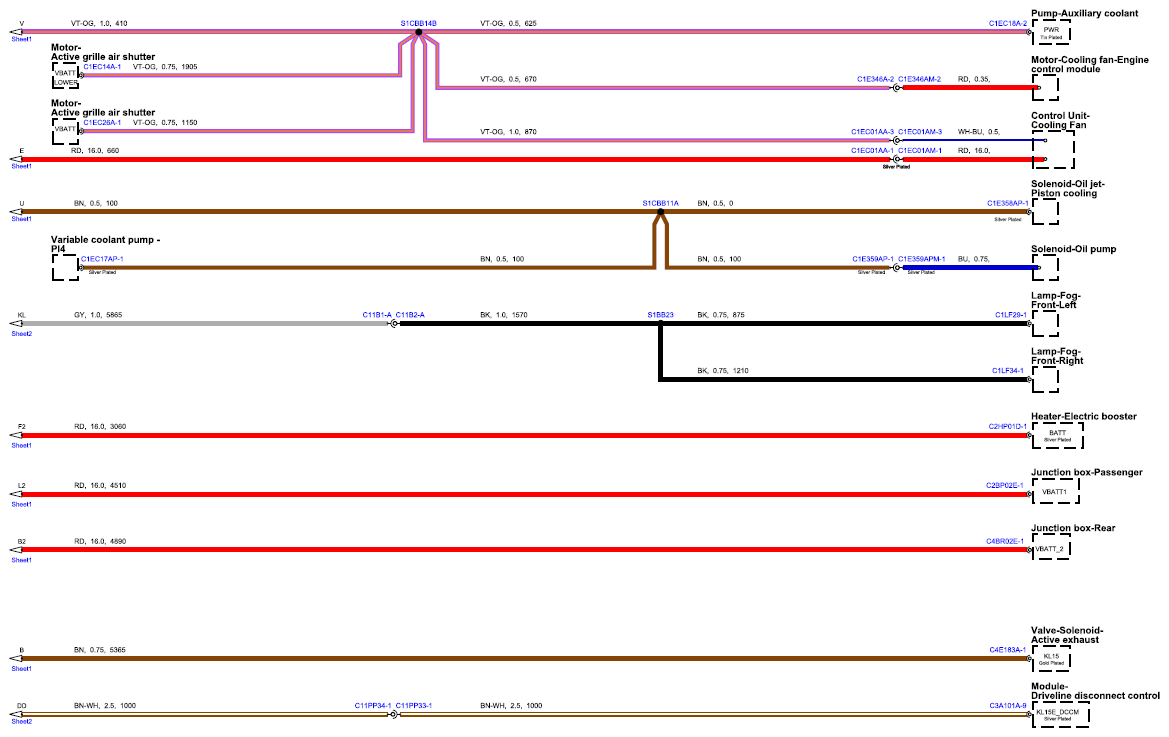

Fig 6: Engine Junction Box Circuit Diagram - PI4 (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
