OEM Wiring Diagrams -- Range Rover EVOQUE L551
>>
413-13 Parking Aid Wiring Diagrams
>>
Proximity camera system
Proximity camera system

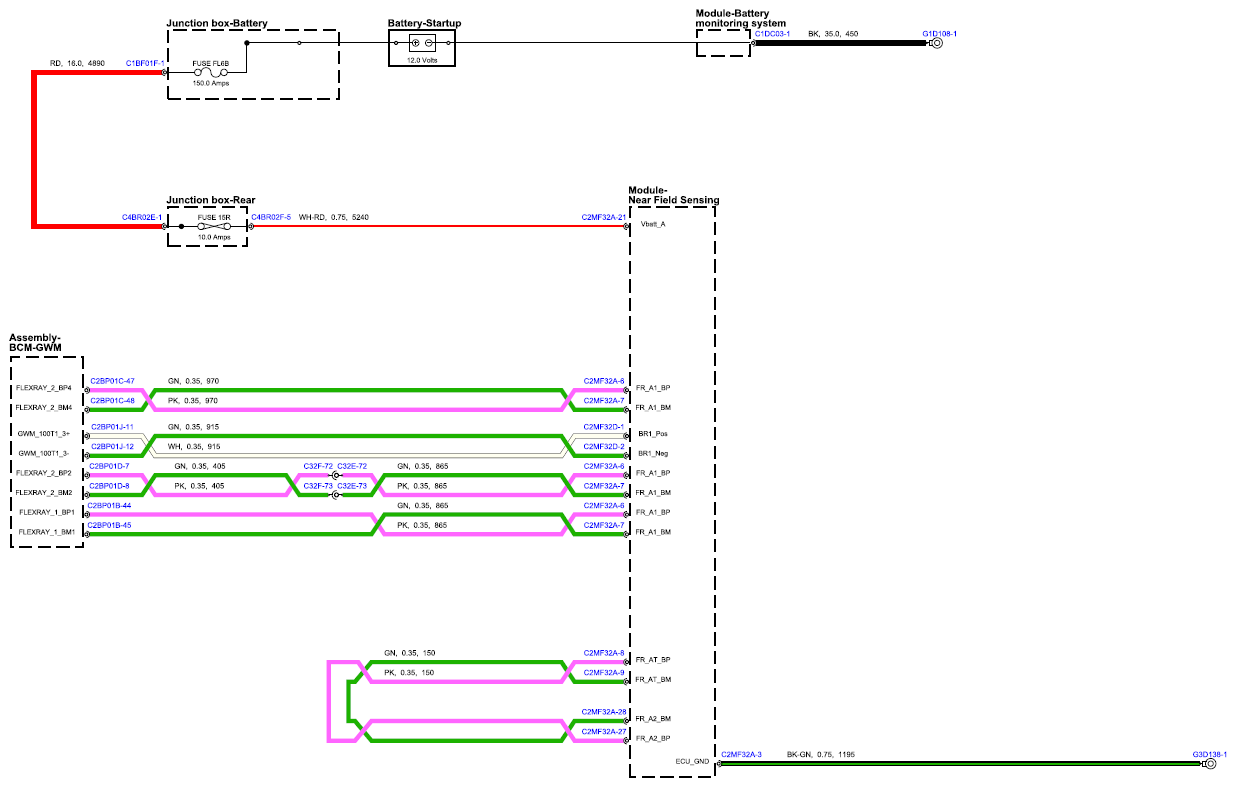

Fig 1: Proximity Camera System Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

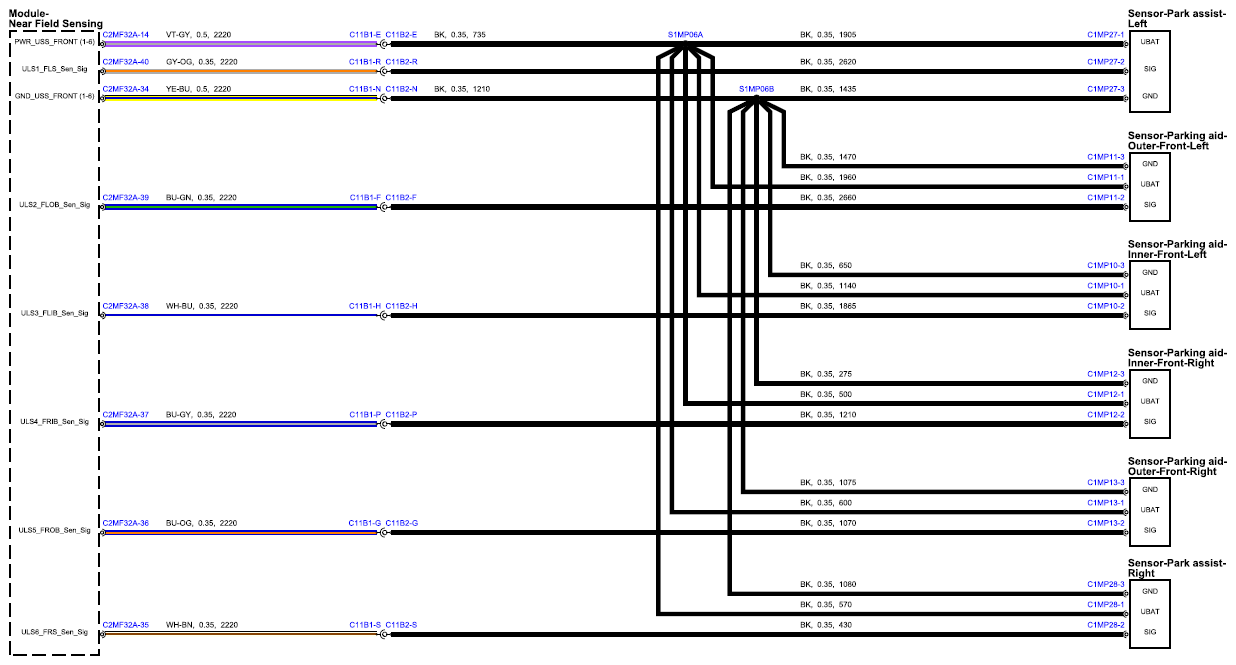

Fig 2: Proximity Camera System Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

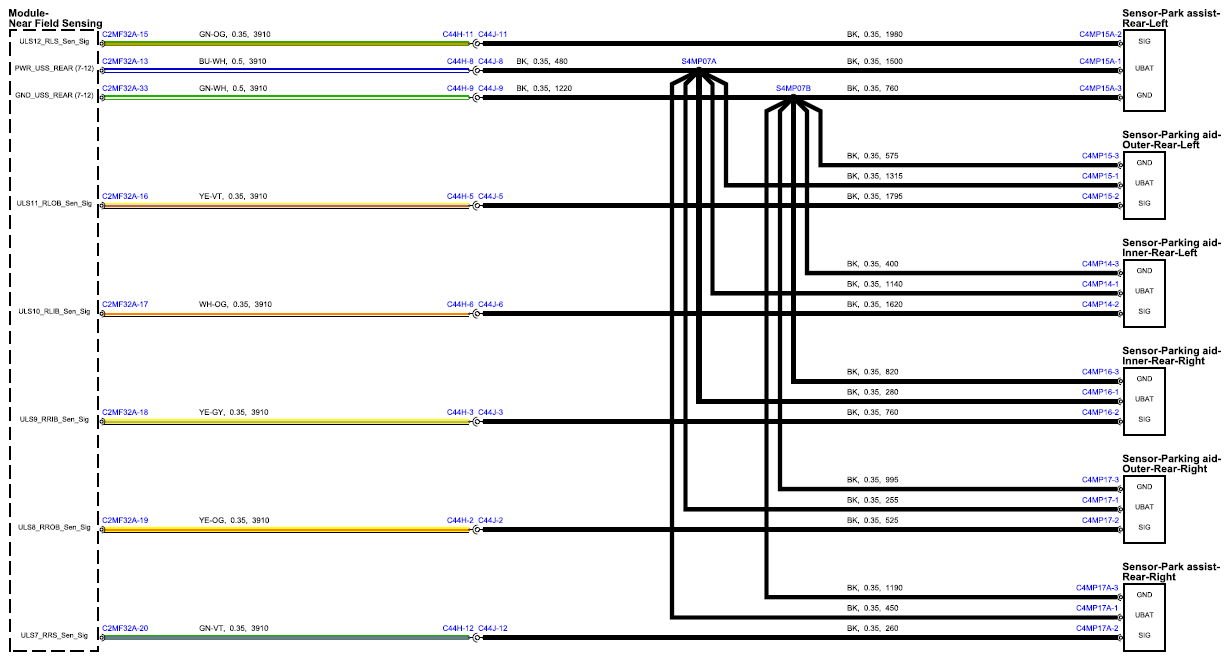

Fig 3: Proximity Camera System Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

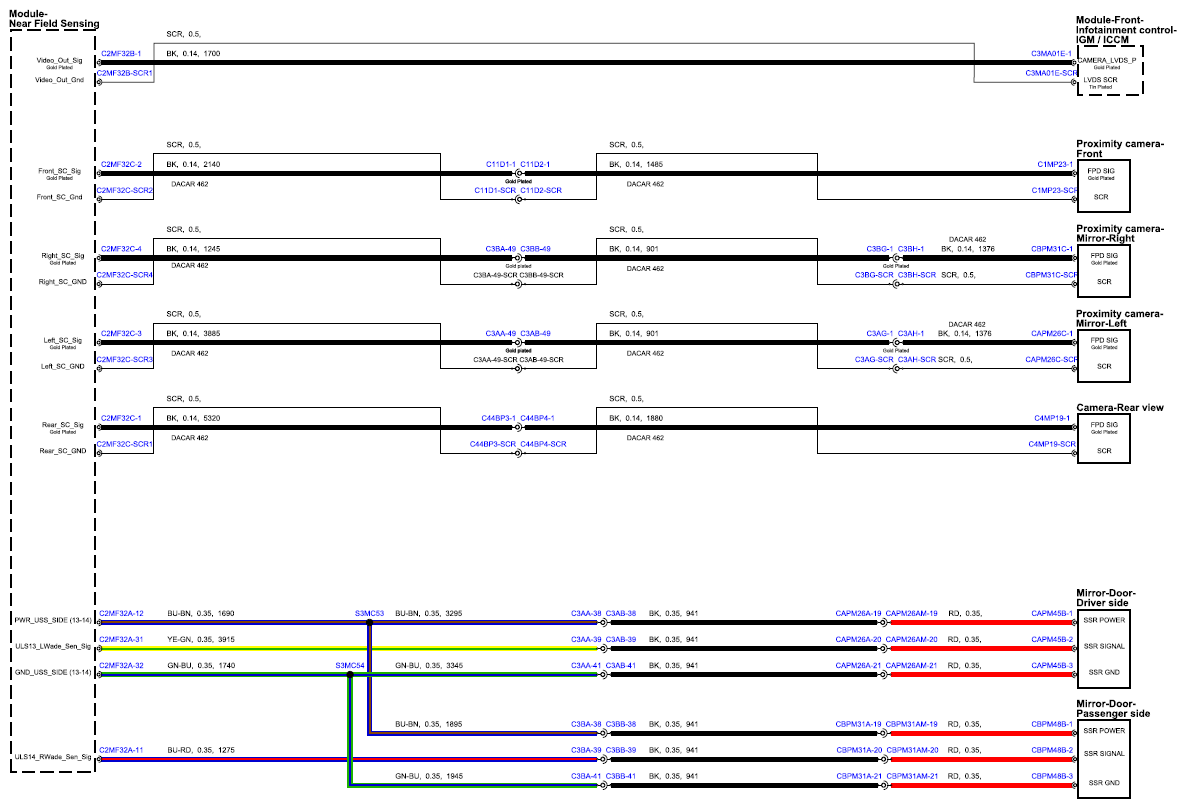

Fig 4: Proximity Camera System Circuit Diagram (Sheet 4)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
