Head-Up Display

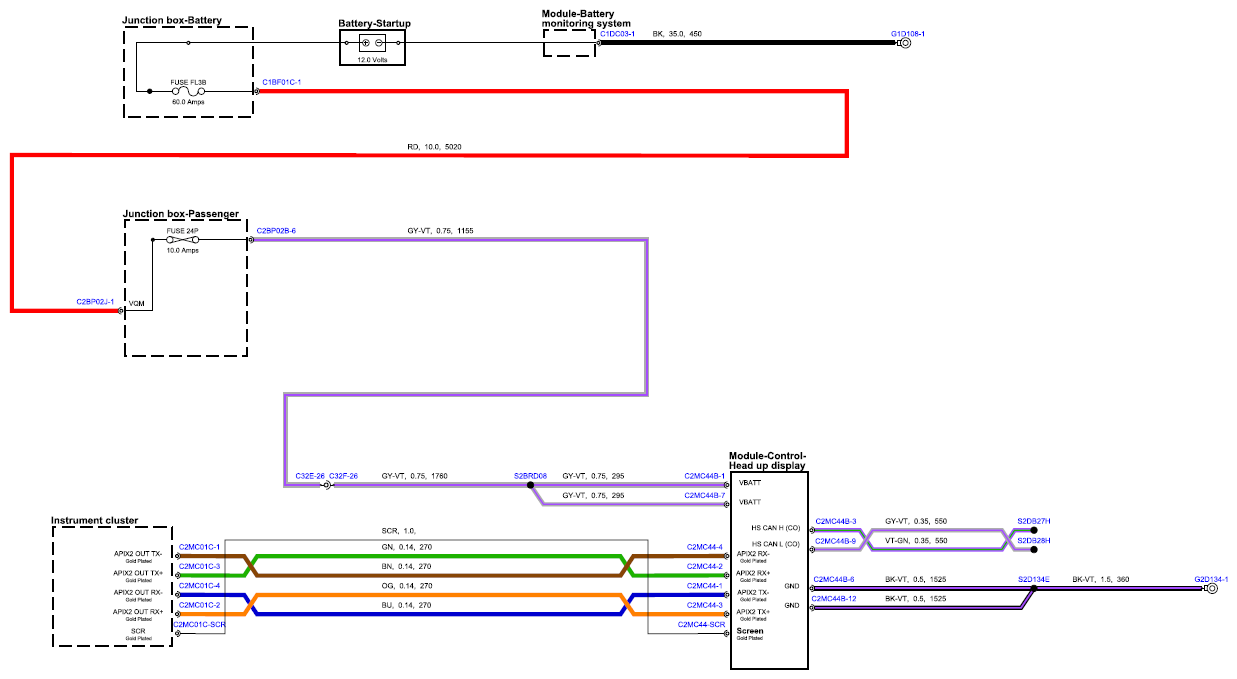

Fig 1: Head-Up Display Circuit Diagram

G15597481

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
