413-06 Horn Wiring Diagrams

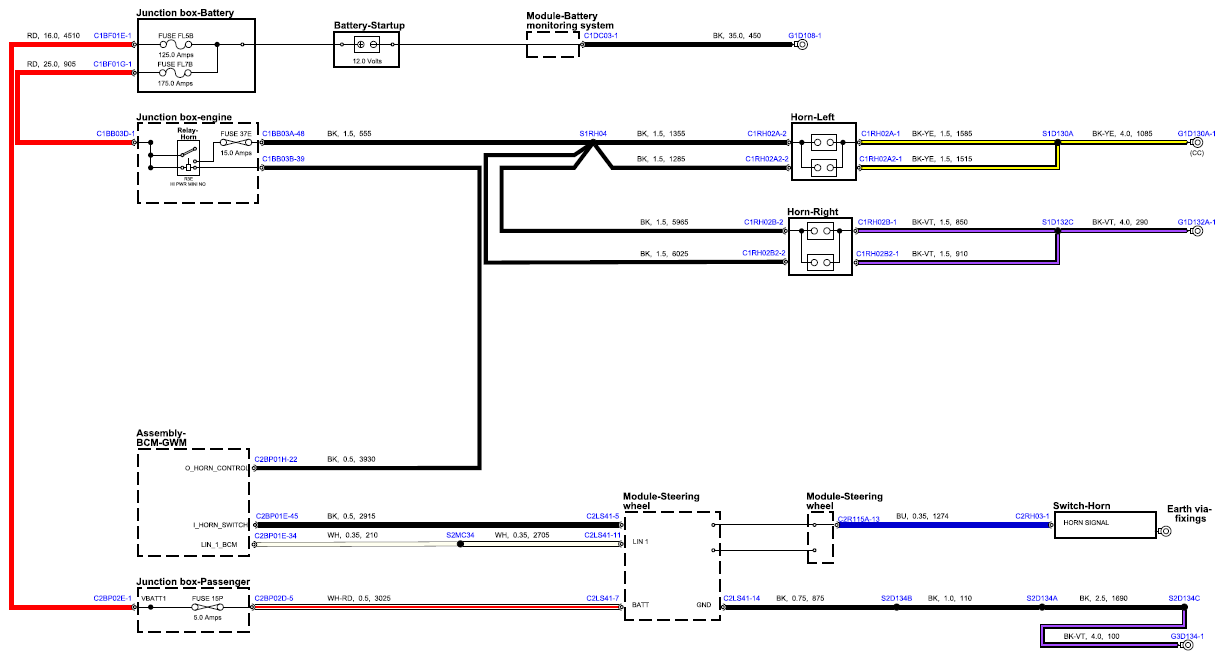

Fig 1: Horn Circuit Diagram

G15597476

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
