413-00 Instrument Cluster And Panel Illumination Wiring Diagrams

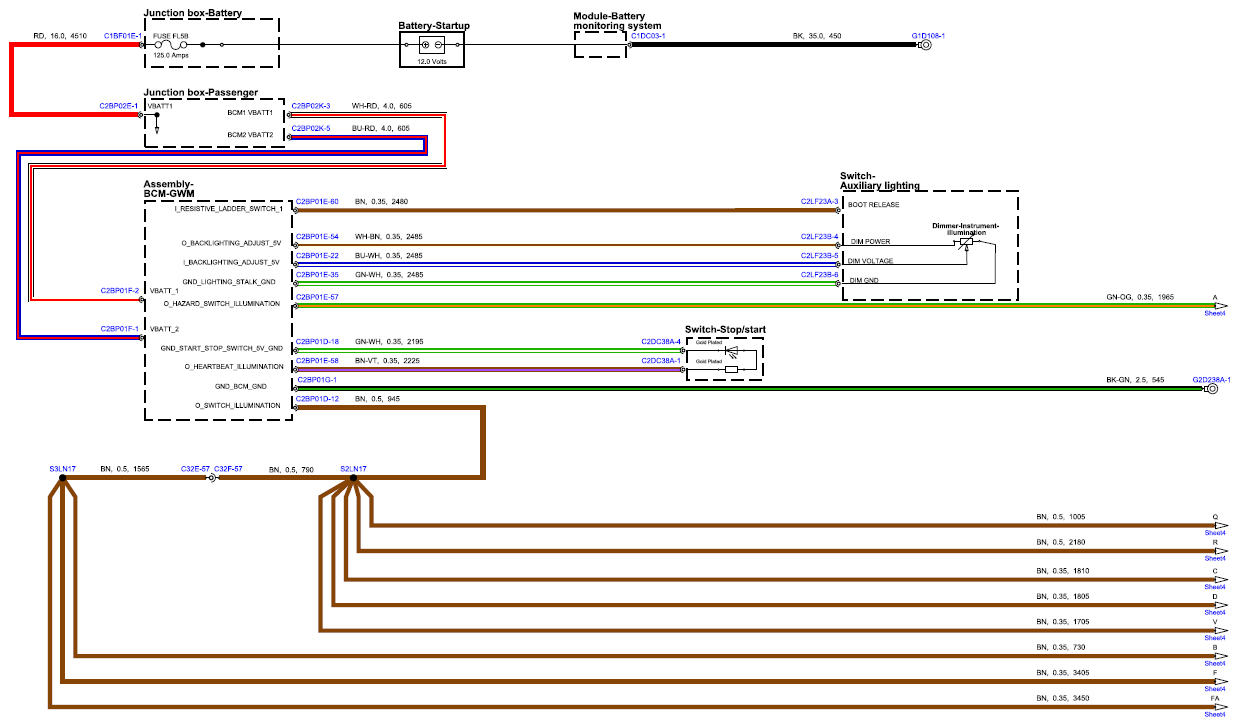

Fig 1: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

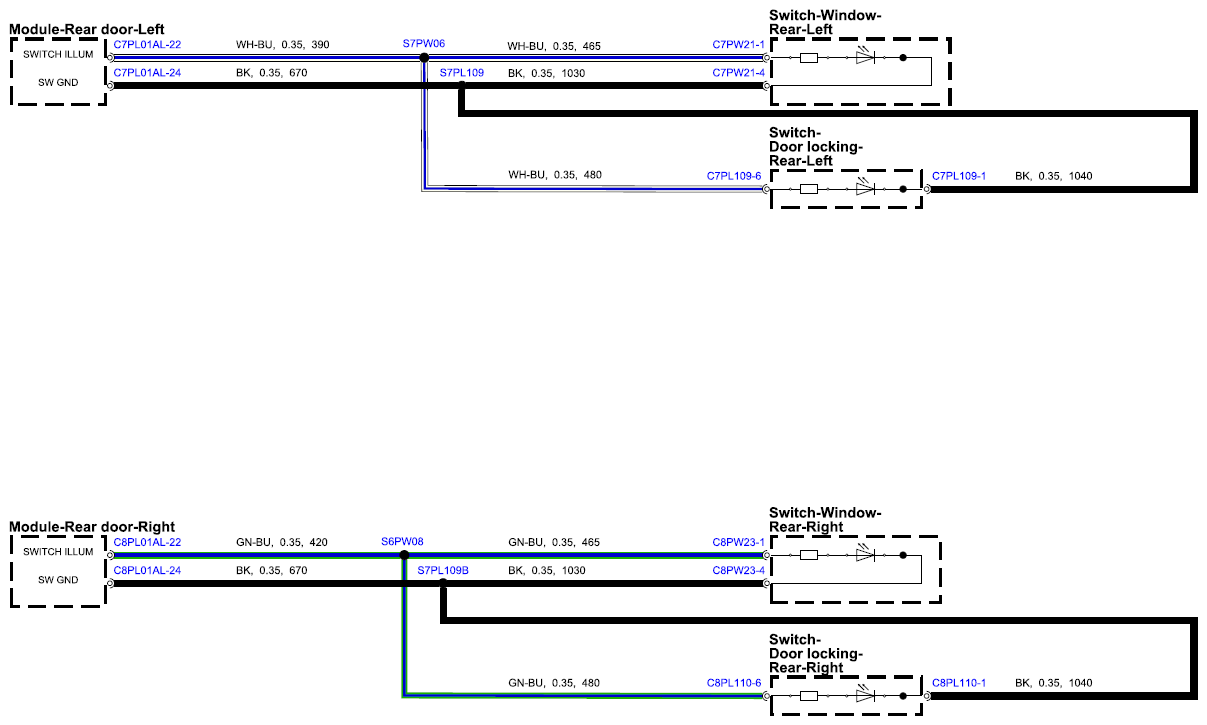

Fig 2: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

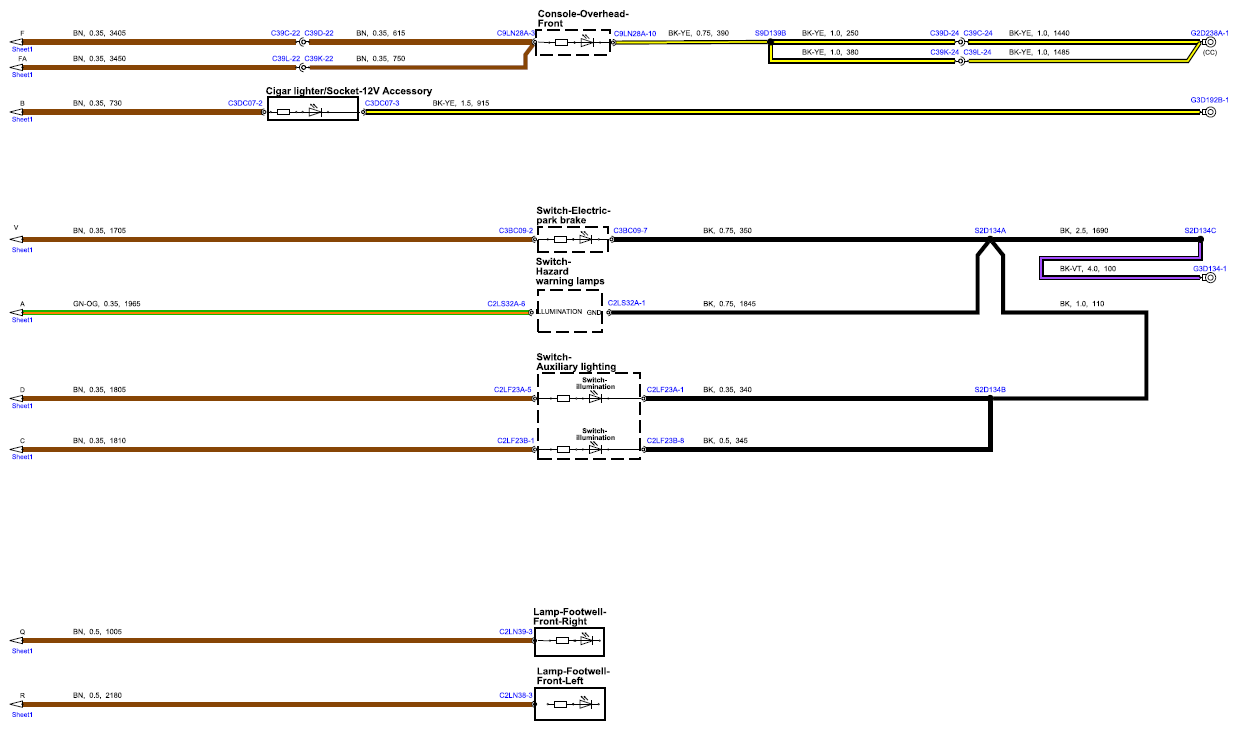

Fig 3: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

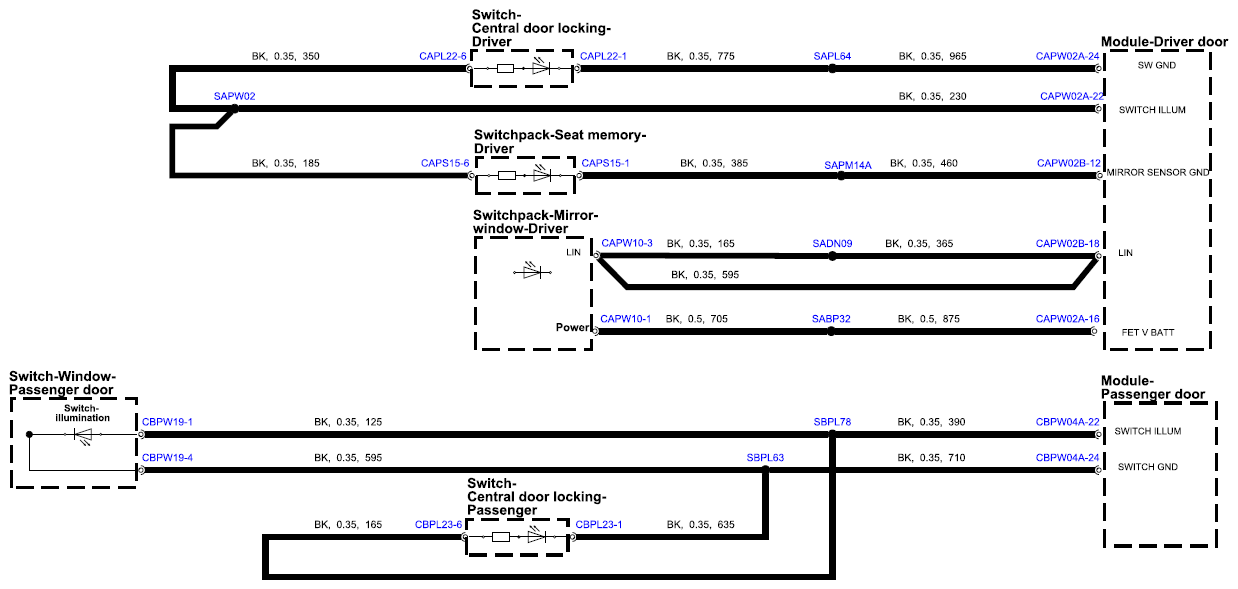

Fig 4: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
