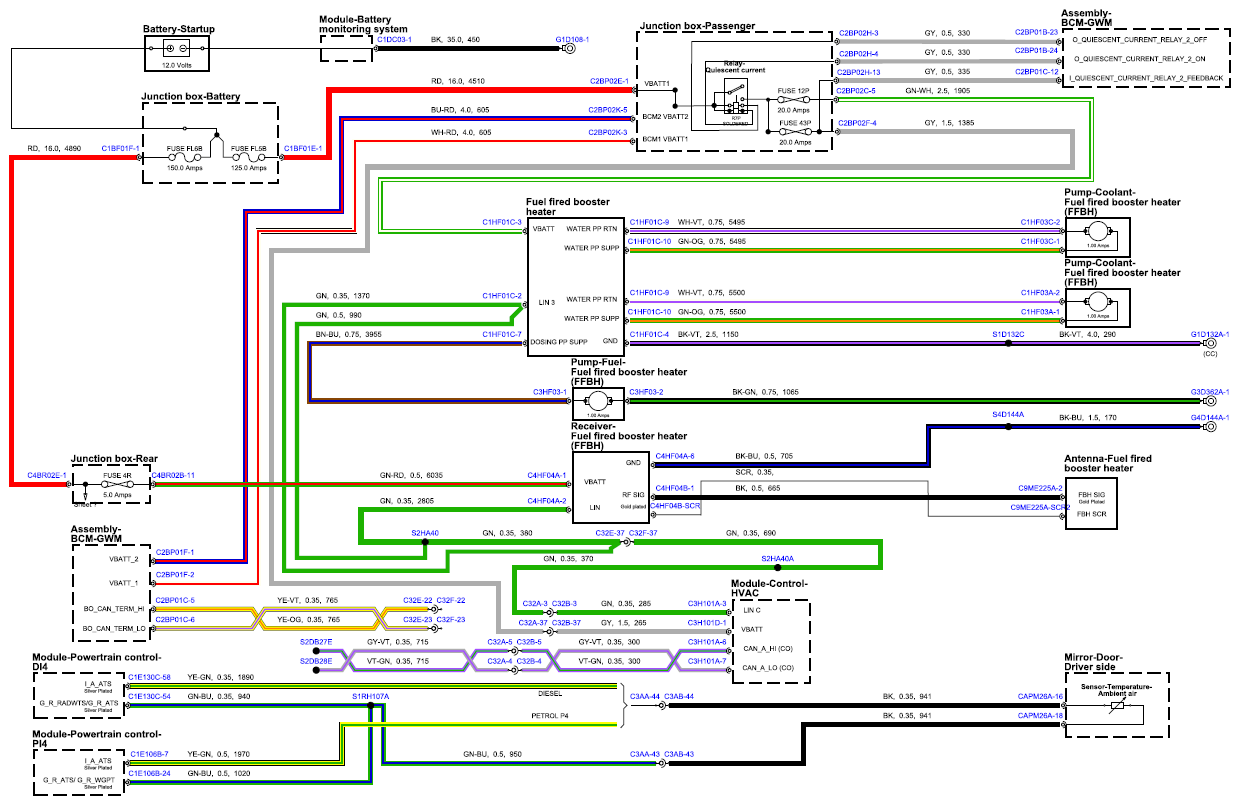

Home >> Land Rover >> 2021 >> Range Rover Evoque R-Dynamic S >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover EVOQUE L551 >> 412-02 Auxiliary Climate Control Wiring Diagrams >> Fuel fired booster heater
