310-01 Fuel Tank And Fuel Lines Wiring Diagrams: Pi3

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - PI3 (Sheet 1)
G15597454Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

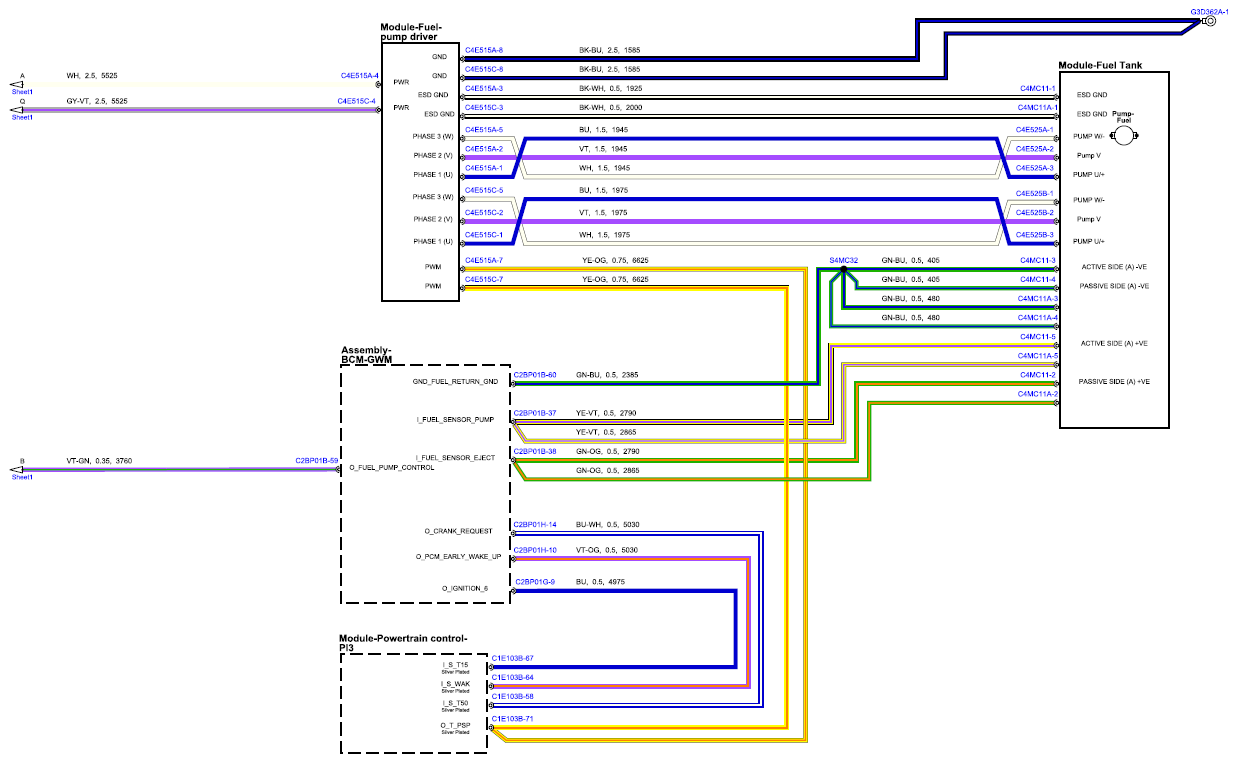

Fig 2: Fuel Tank And Fuel Lines Circuit Diagram - PI3 (Sheet 2)
G15597455Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
