307-01 Automatic Transmission Wiring Diagrams: Pi4

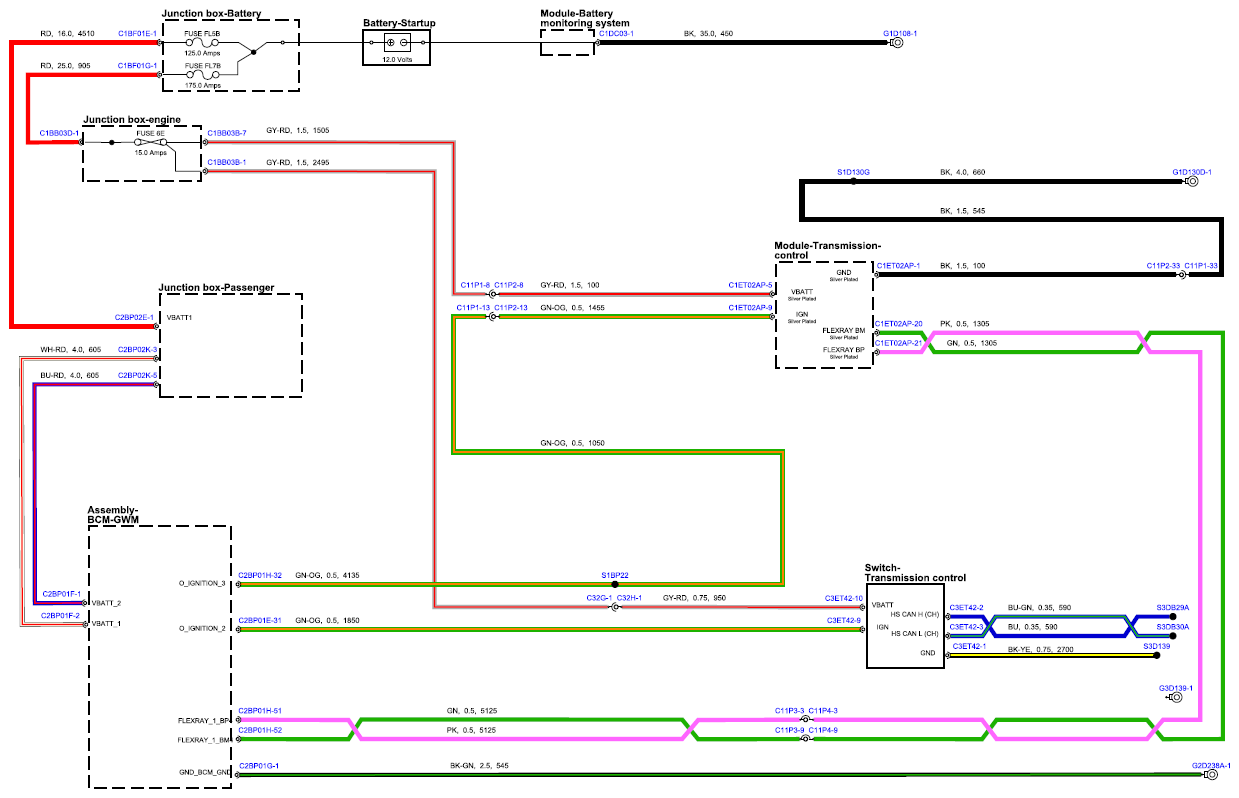

Fig 1: Automatic Transmission Circuit Diagram - PI4 (Sheet 1)
G15597450Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

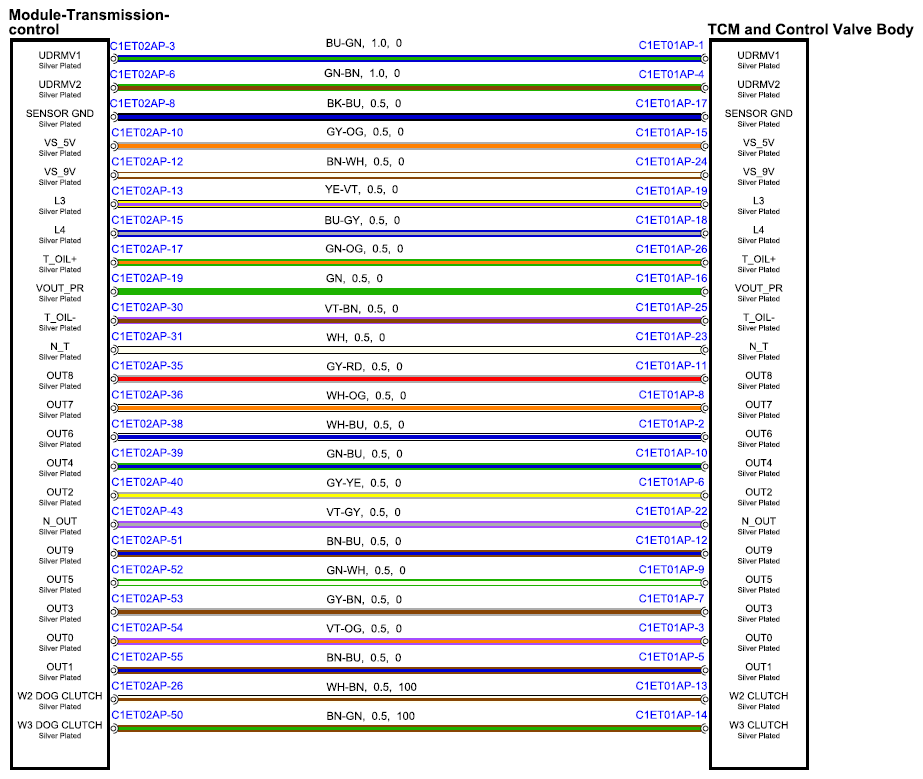

Fig 2: Automatic Transmission Circuit Diagram - PI4 (Sheet 2)
G15597451Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
