307-01 Automatic Transmission Wiring Diagrams: Pi3

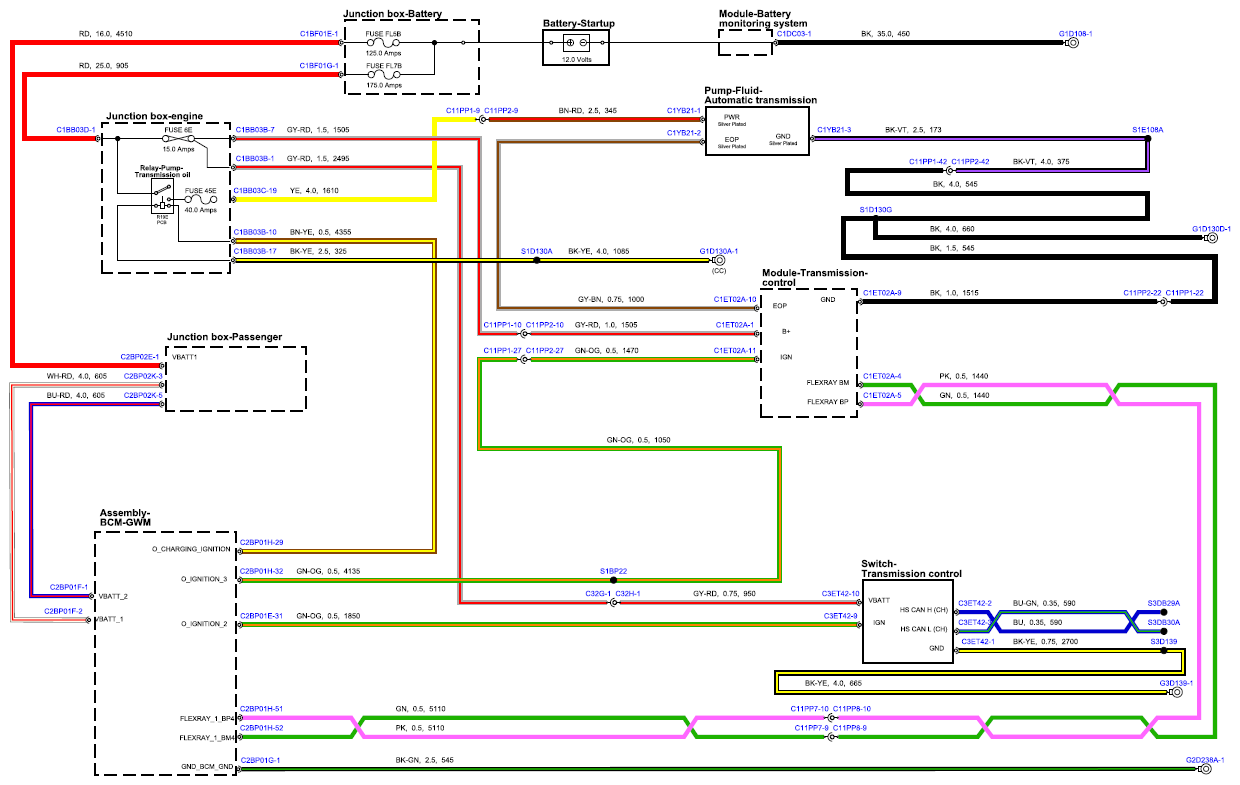

Fig 1: Automatic Transmission Circuit Diagram - PI3

G15597449

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
