303-06D Starting System - Pi4 Wiring Diagrams: Notes

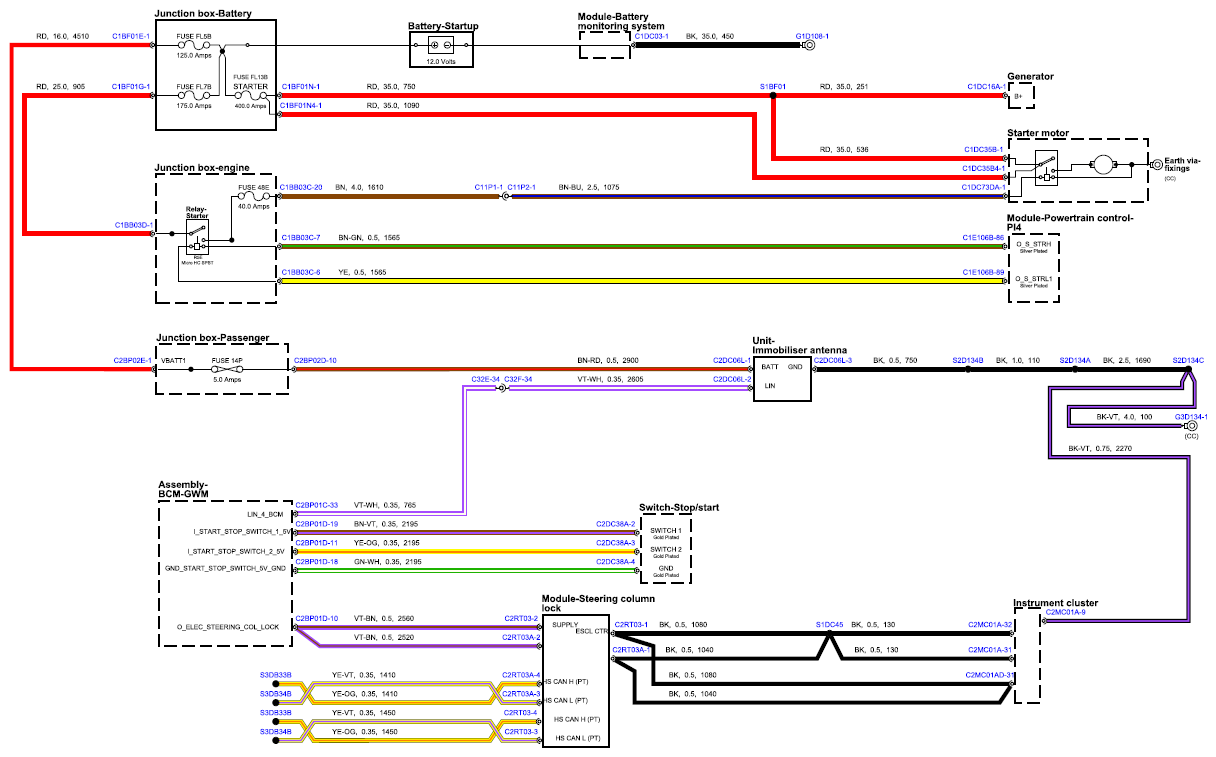

Fig 1: Starting System Circuit Diagram - PI4

G15597403
