303-06C Starting System - Pi3 Wiring Diagrams: Notes

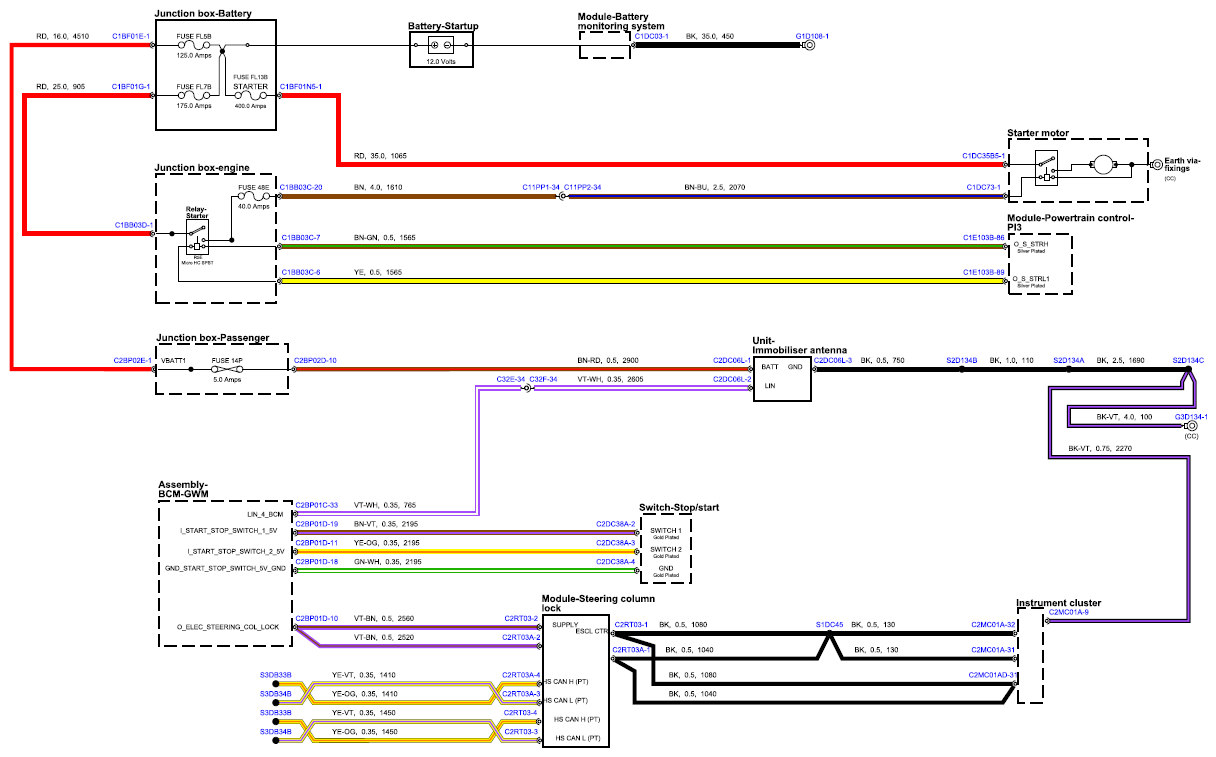

Fig 1: Starting System Circuit Diagram - PI3

G15597399

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
