303-06B Starting System - Di4 Wiring Diagrams: Notes

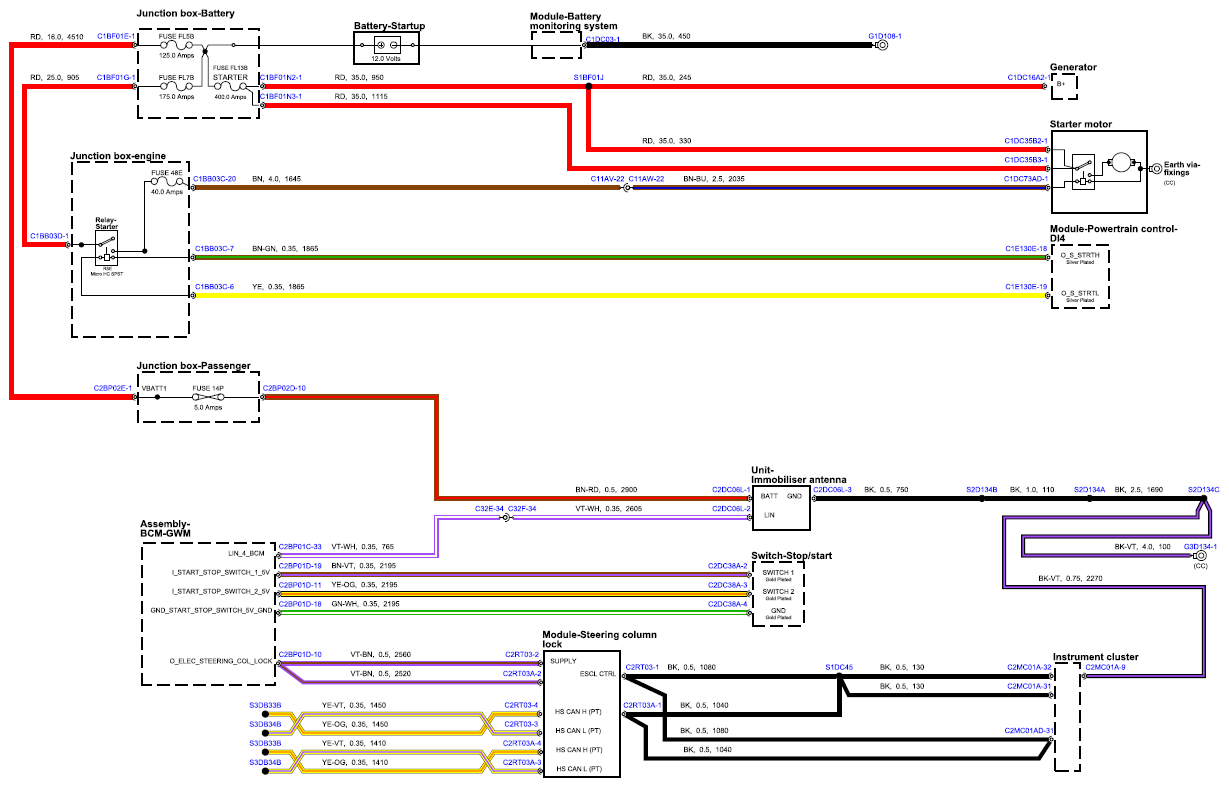

Fig 1: Starting System Circuit Diagram - DI4 (Sheet 1)

G15597395

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
