303-03 Engine Cooling Wiring Diagrams: Pi3

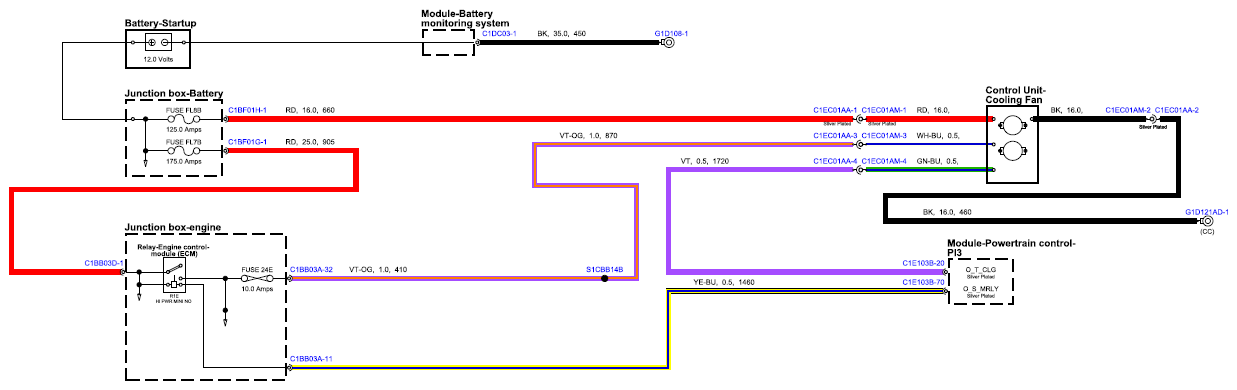

Fig 1: Engine Cooling Circuit Diagram (PI3)

G15597393

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
