303-03 Engine Cooling Wiring Diagrams: Di4

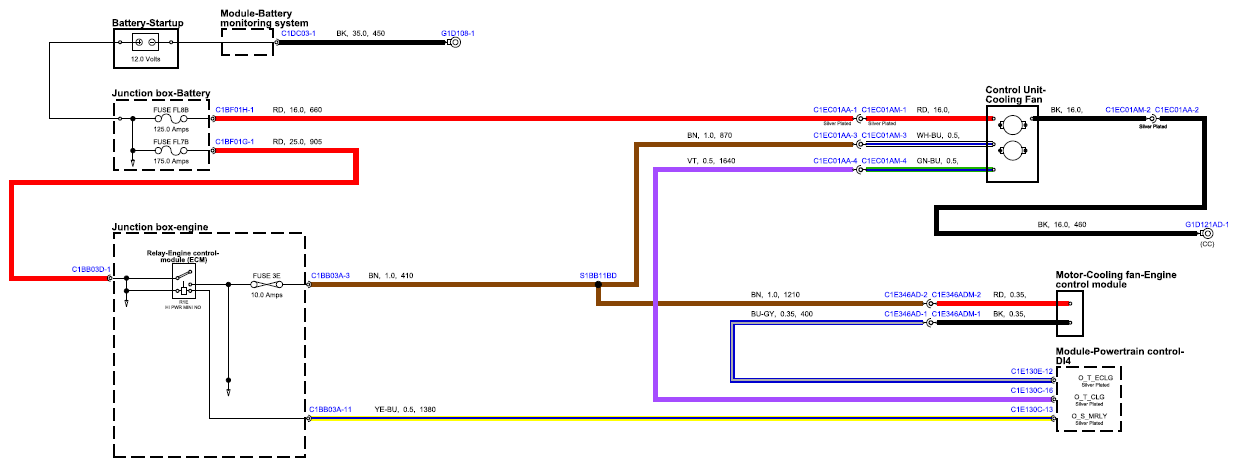

Fig 1: Engine Cooling Circuit Diagram (DI4)

G15597392

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
