Clock spring

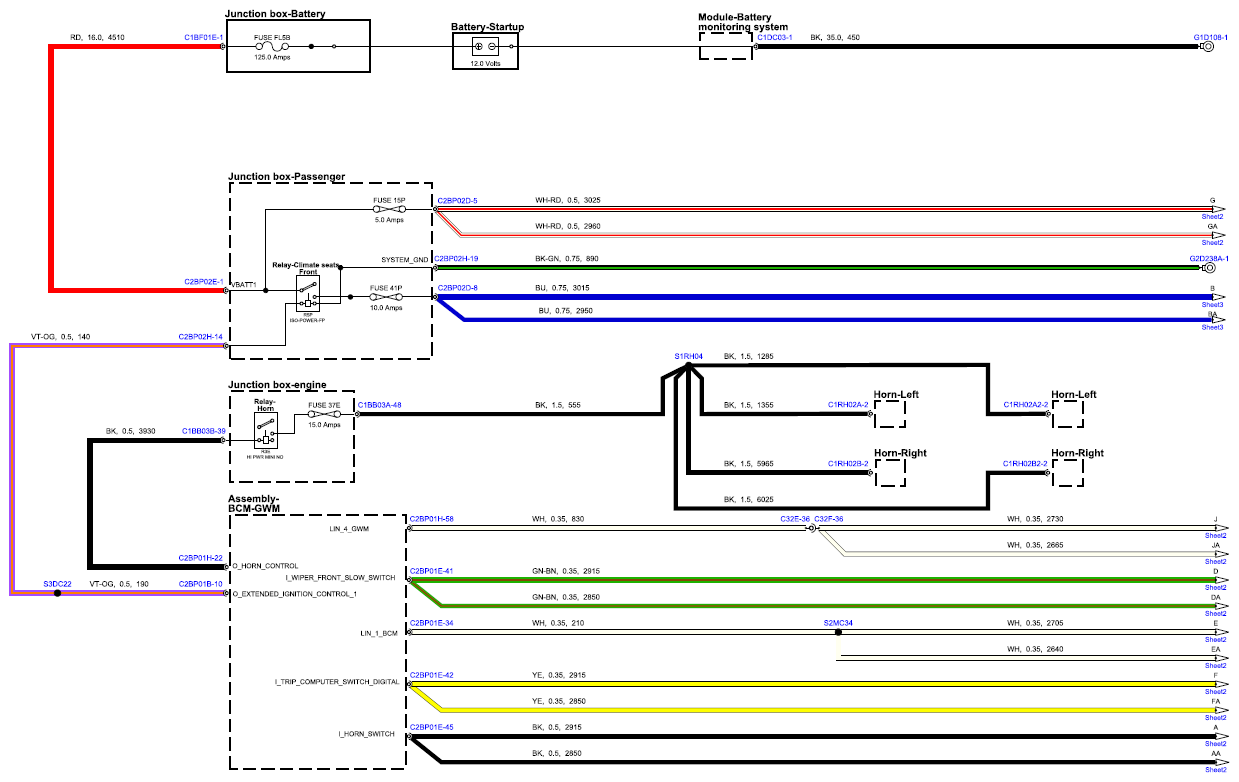

Fig 1: Clock Spring Circuit Diagram (Sheet 1)

G15597388

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

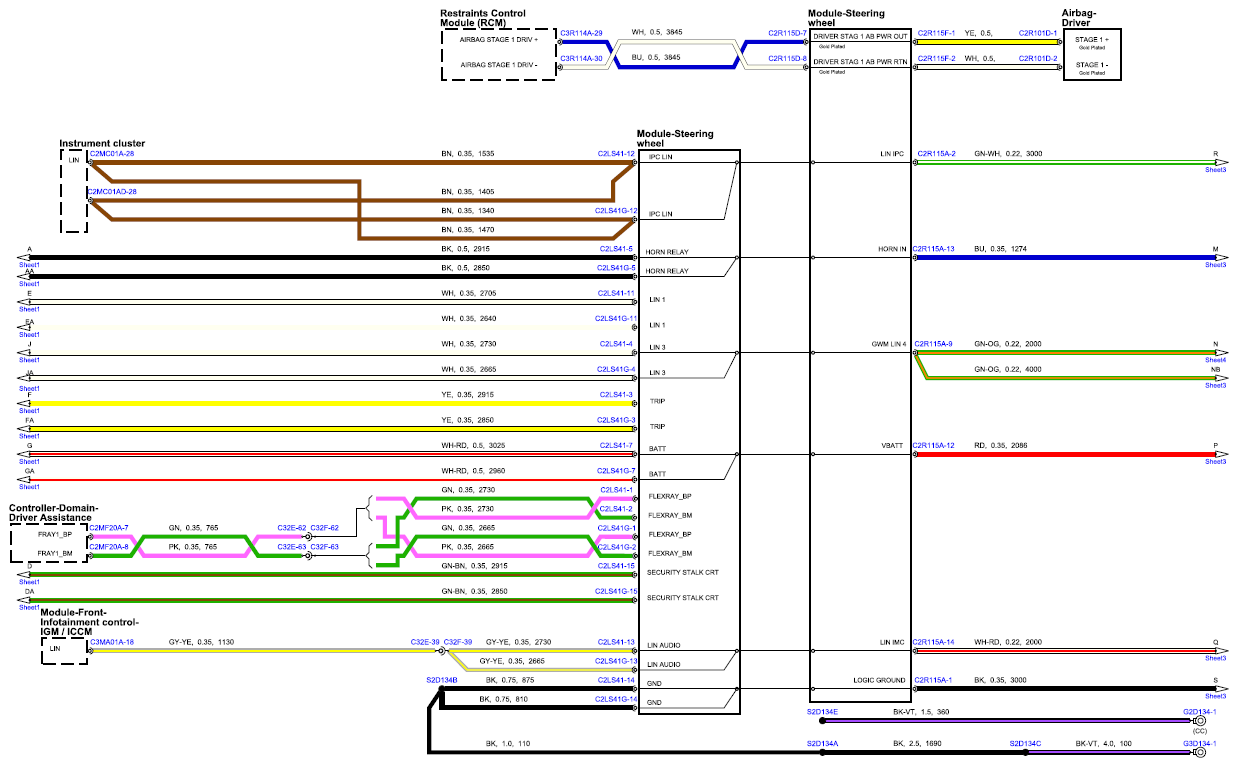

Fig 2: Clock Spring Circuit Diagram (Sheet 2)

G15597389

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

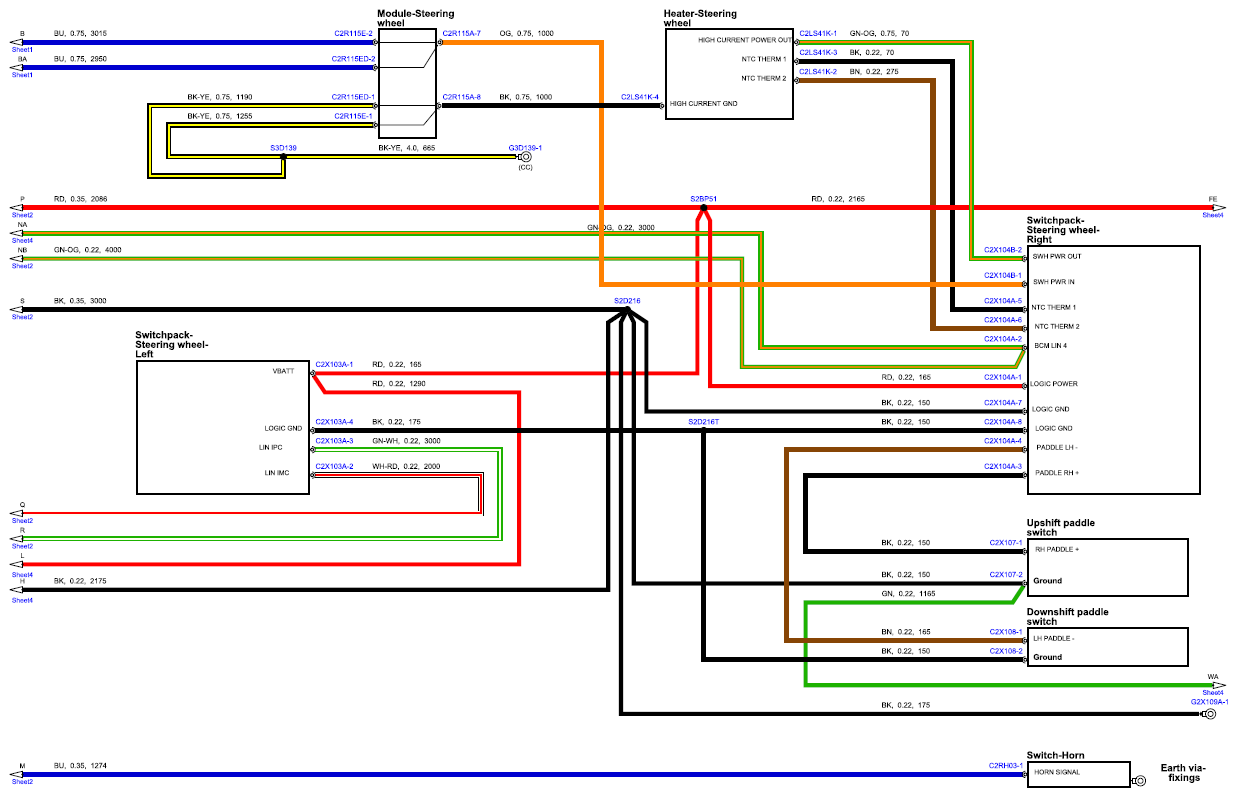

Fig 3: Clock Spring Circuit Diagram (Sheet 3)

G15597390

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

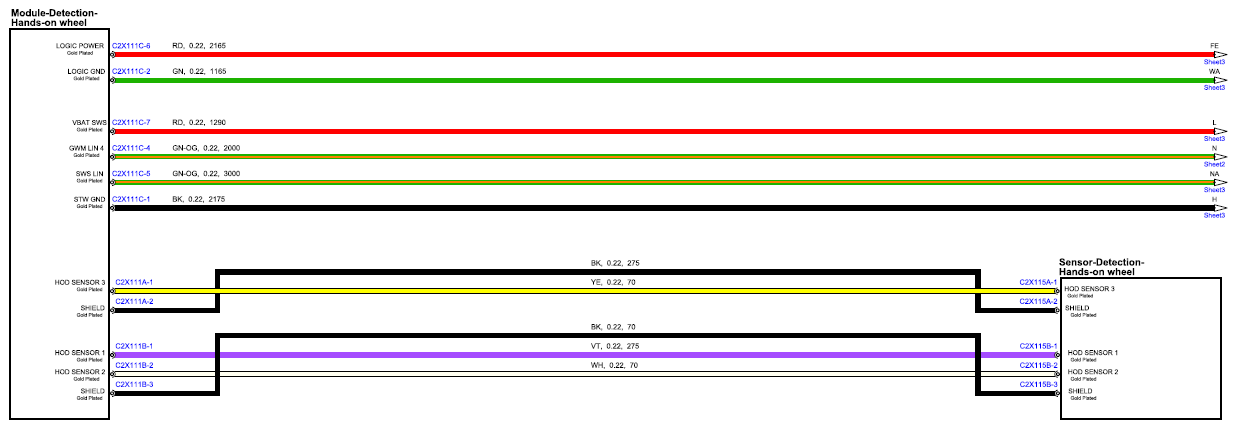

Fig 4: Clock Spring Circuit Diagram (Sheet 4)

G15597391

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
