206-09 Anti-Lock Control Wiring Diagrams

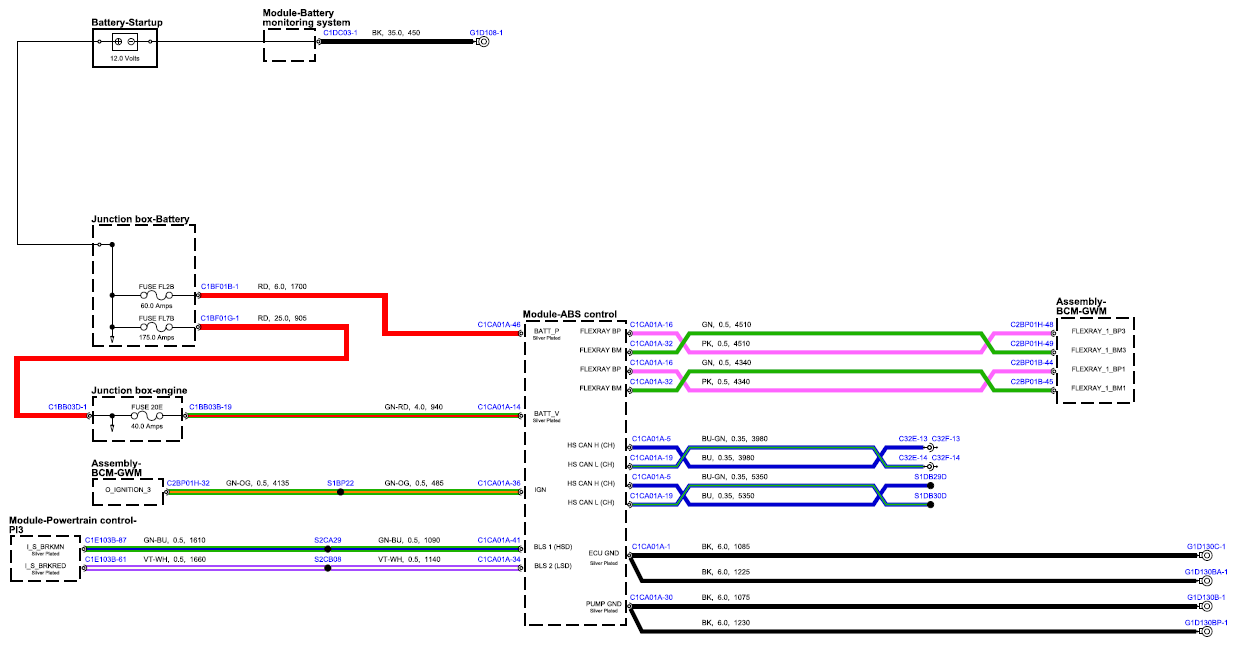

Fig 1: Anti-Lock Control Circuit Diagram (Sheet 1)
G15597385Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

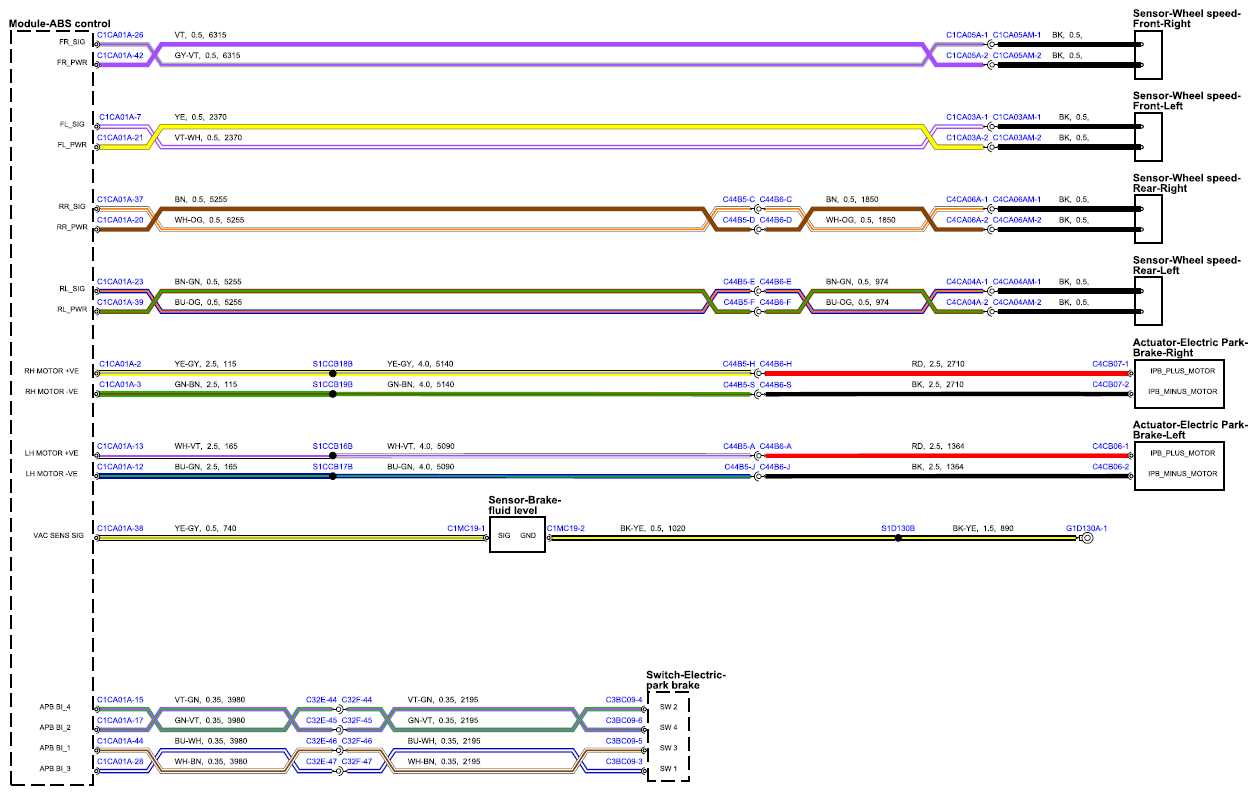

Fig 2: Anti-Lock Control Circuit Diagram (Sheet 2)
G15597386Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
