206-05 Parking Brake And Actuation Wiring Diagrams

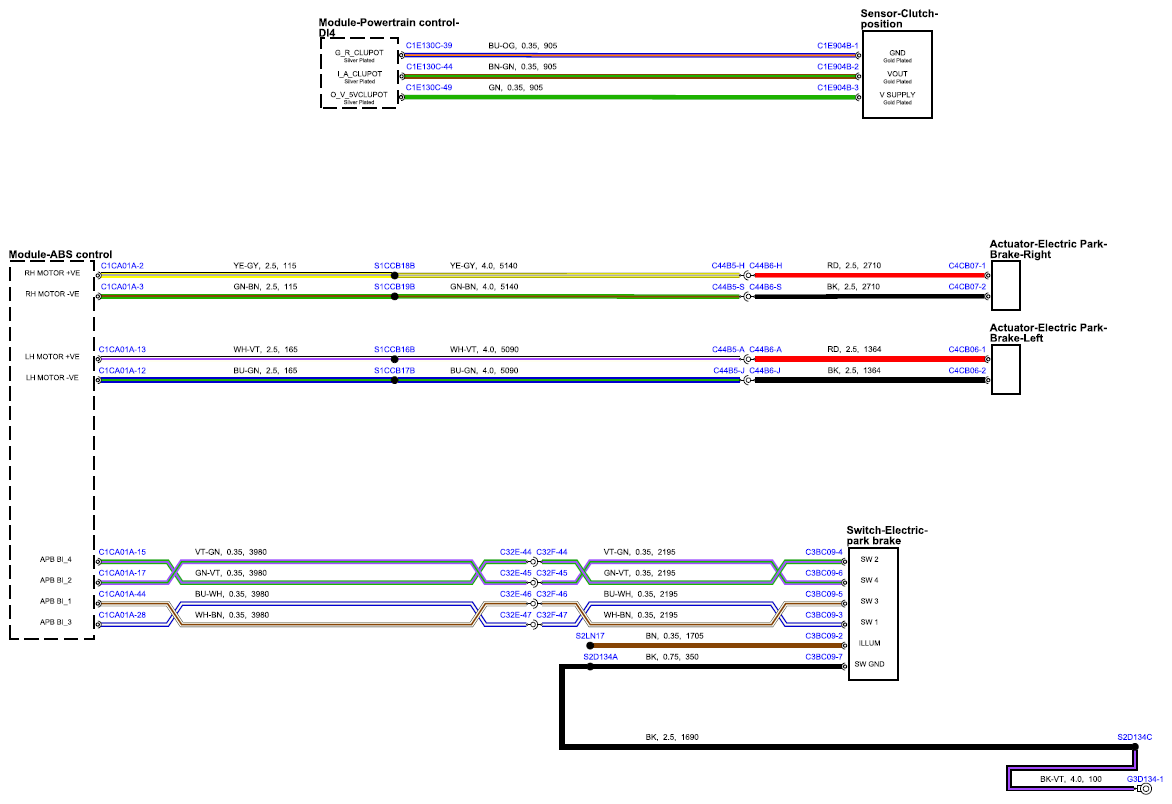

Fig 1: Parking Brake And Actuation Circuit Diagram

G15597384

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
