205-02 Rear Drive Axle And Differential Wiring Diagrams: Diesel

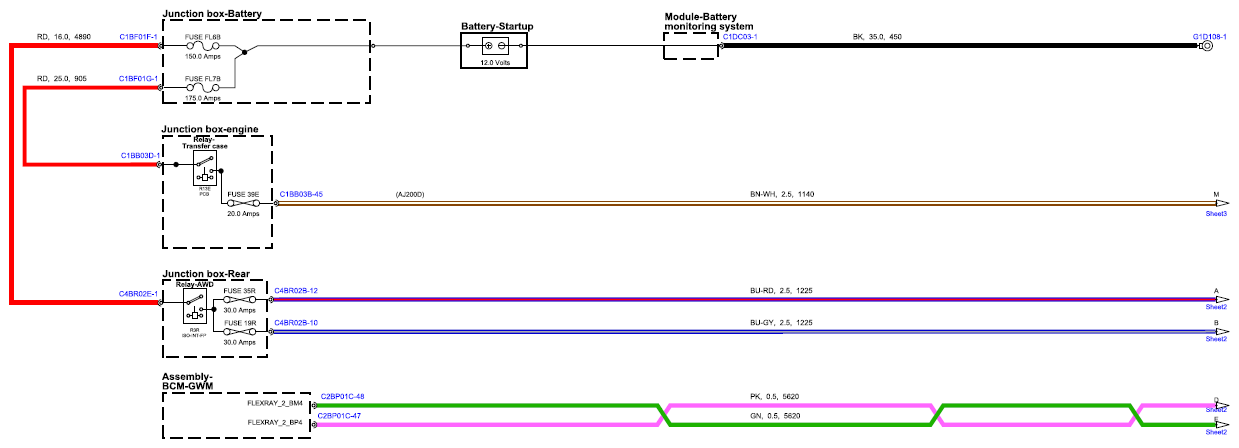

Fig 1: Rear Drive Axle And Differential Circuit Diagram - Diesel (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

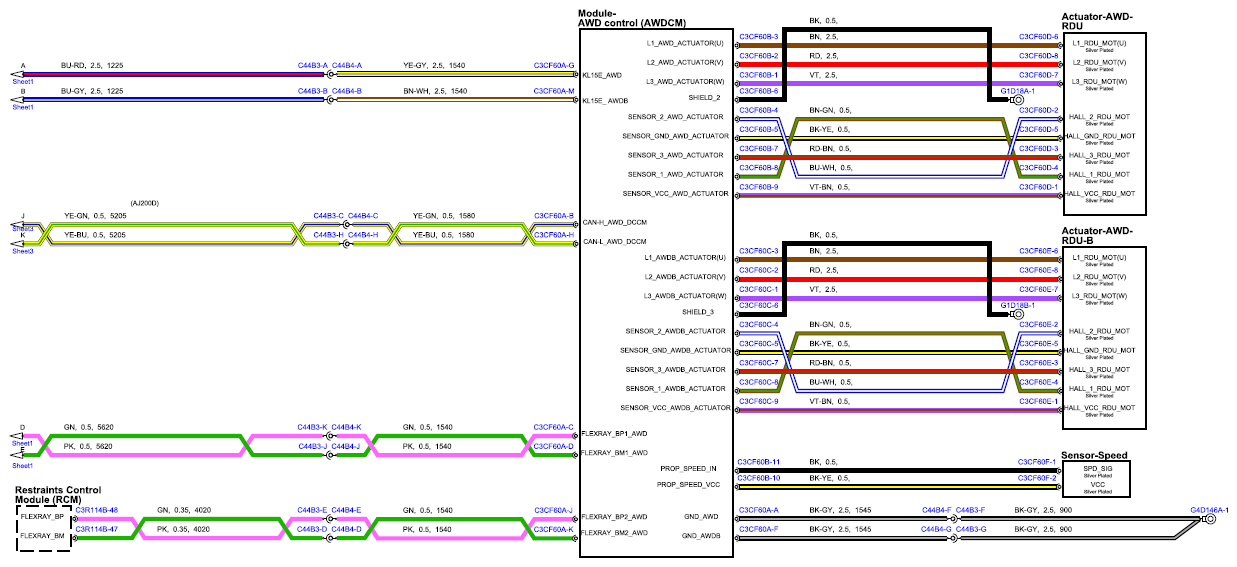

Fig 2: Rear Drive Axle And Differential Circuit Diagram - Diesel (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

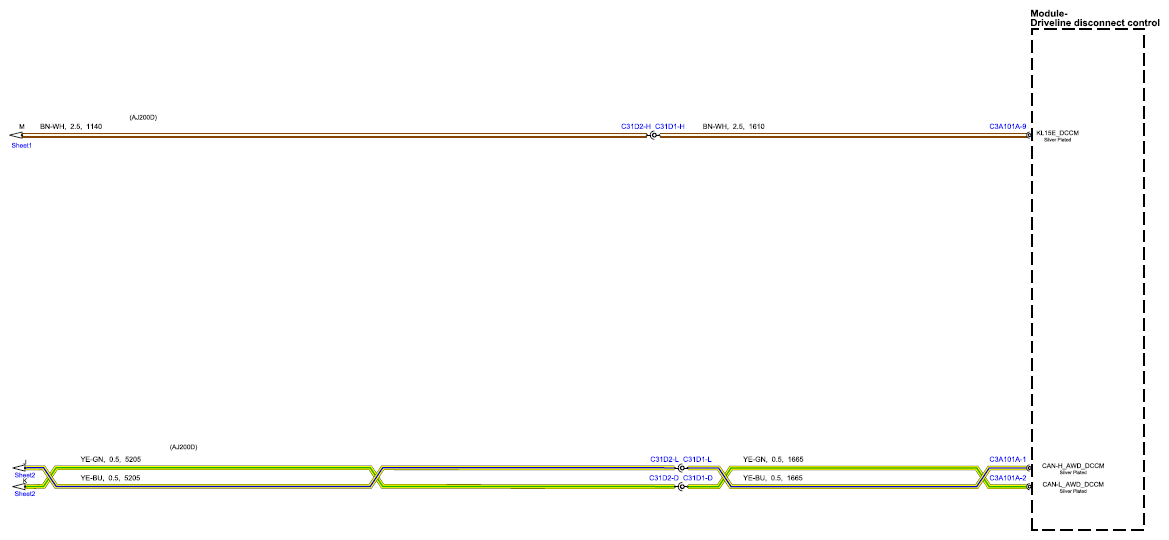

Fig 3: Rear Drive Axle And Differential Circuit Diagram - Diesel (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

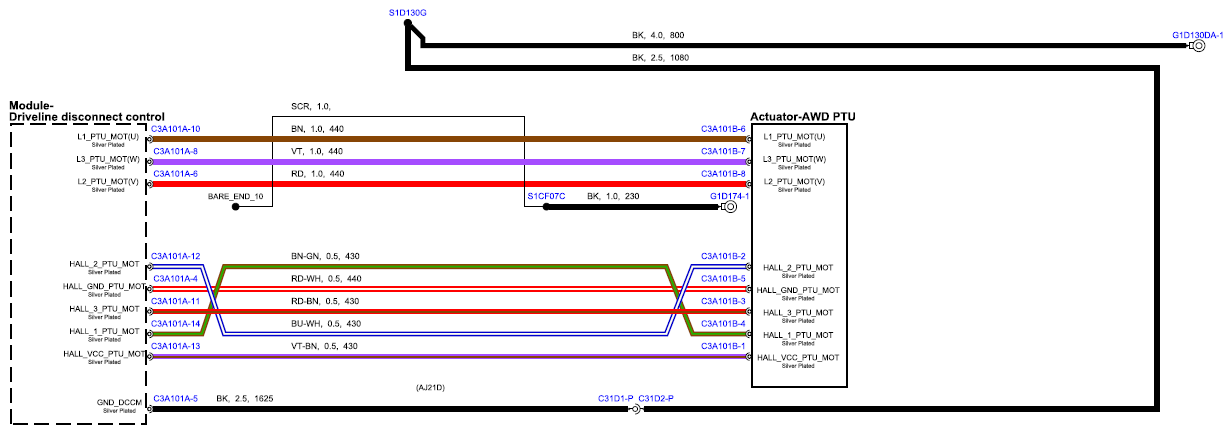

Fig 4: Rear Drive Axle And Differential Circuit Diagram - Diesel (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
