204-04 Wheels And Tires Wiring Diagrams

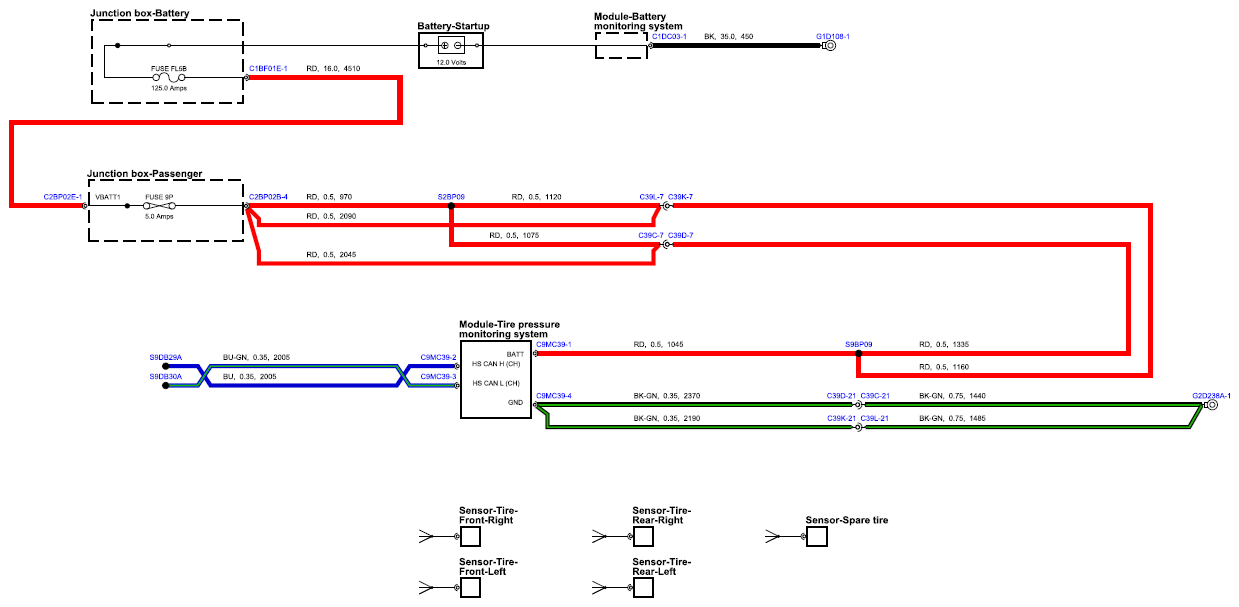

Fig 1: Tire Pressure Monitoring System Circuit Diagram

G15597372

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
