Starting System - INGENIUM I4 2.0L Petrol (G2112745)

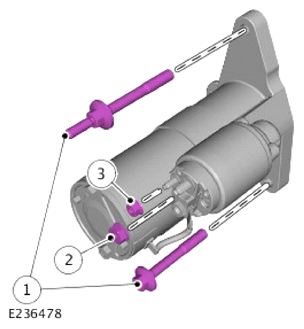

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Starter motor bolts	48	35	-
2	Starter motor solenoid connector nut	10	7	-
3	Starter motor signal wire nut	7	-	62
