Tailgate Wiring Harness (G2318733): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

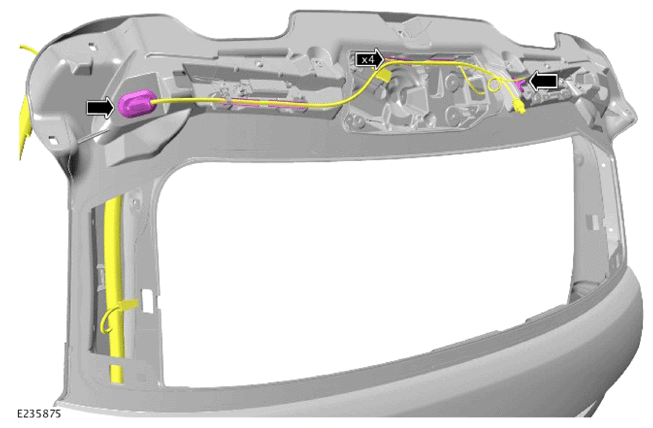

- Install the wiring harness.
- Install the 3 tailgate wiring harness grommets.
- Install the 16 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

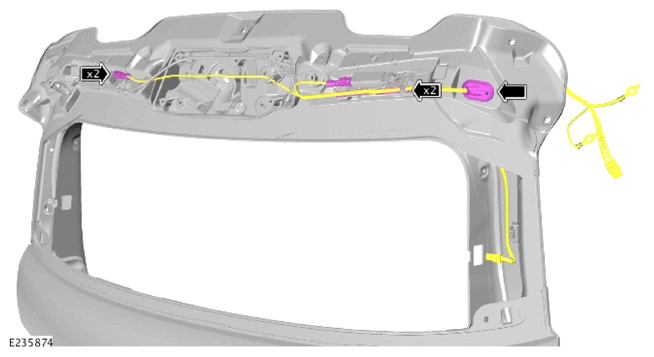

- Install the wiring harness.
- Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 grommets.
- Install the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

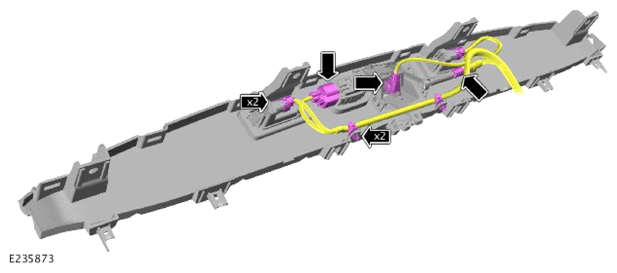

- Install the wiring harness.
- Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Install the 4 clips.
- Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 4 electrical connectors.
- Connect the rear proximity camera washer hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Connect the 2 rear window washer hoses.
- Install the grommet.
- Install the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install and tighten the 2 bolts.
  Torque : 5 Nm
- Install the clip.
- Install the grommet.
Install the left loadspace side trim panel.
Refer to: LEFT LOADSPACE SIDE TRIM PANEL .
Install the left D pillar.
Refer to: D-PILLAR TRIM PANEL .
Install the right D pillar.
Refer to: D-PILLAR TRIM PANEL .
Install the tailgate window.
Refer to: TAILGATE WINDOW .
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT .
