Passenger Compartment Wiring Harness To Instrument Panel Bracket Repair (G2384227): Repair

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

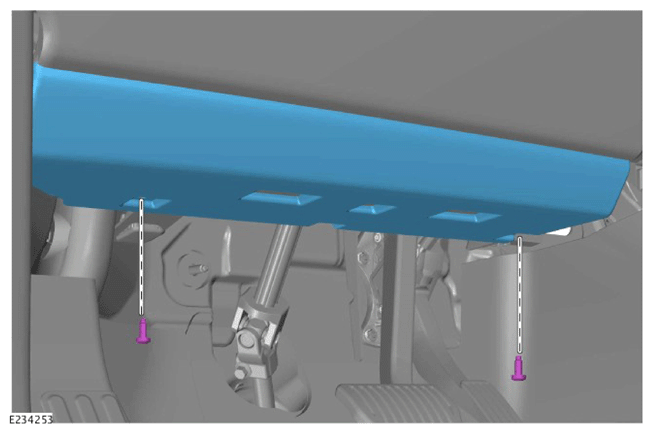

Remove the instrument panel lower trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

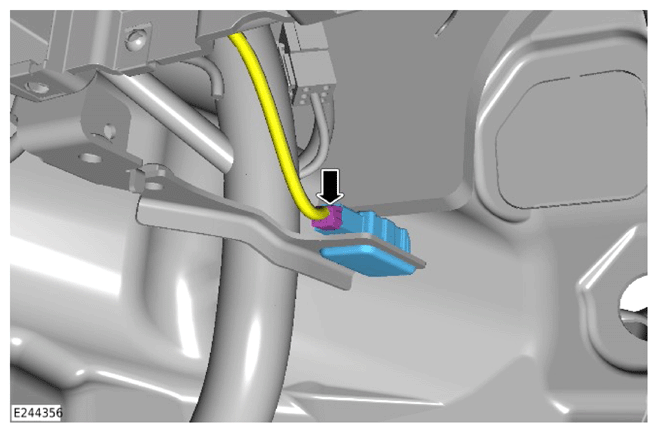

Disconnect the footwell lamp electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

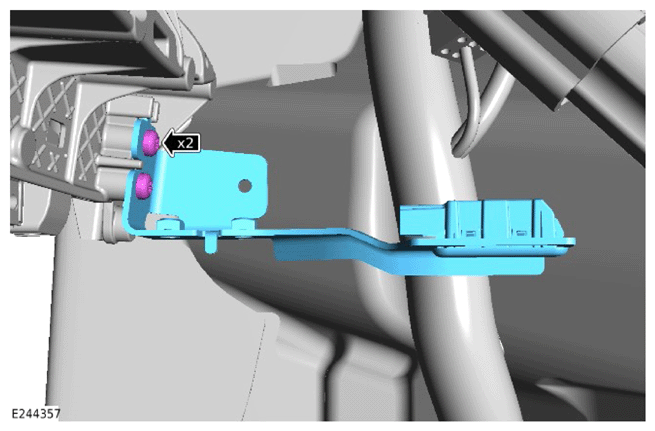

Remove the footwell lamp bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

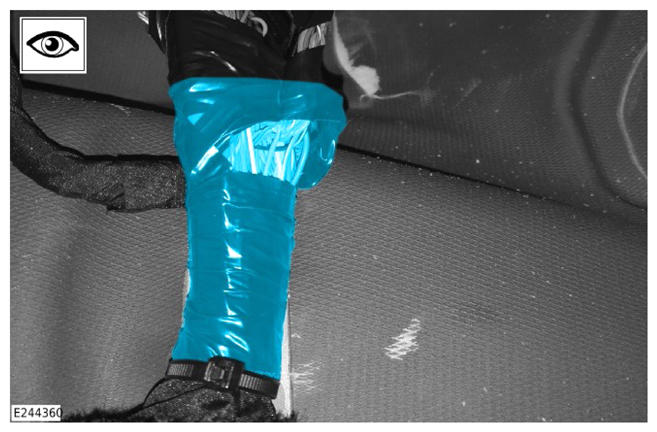

- Visually inspect the wiring harness.
- If the wiring harness is damaged, repair the damaged wiring harness before continuing to step 5.
  Refer to: WIRING HARNESS REPAIR .
- If the wiring harness is not damaged, continue to step 5
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

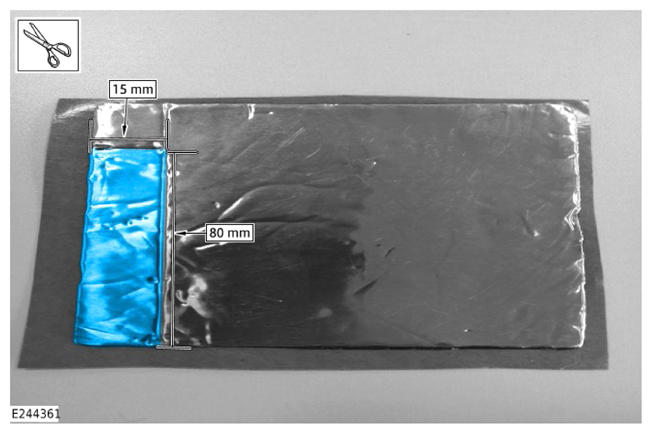

Cut the butyl patch to the measurements shown.
NOTE: The butyl patch should be even across both sides of the footwell lamp bracket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

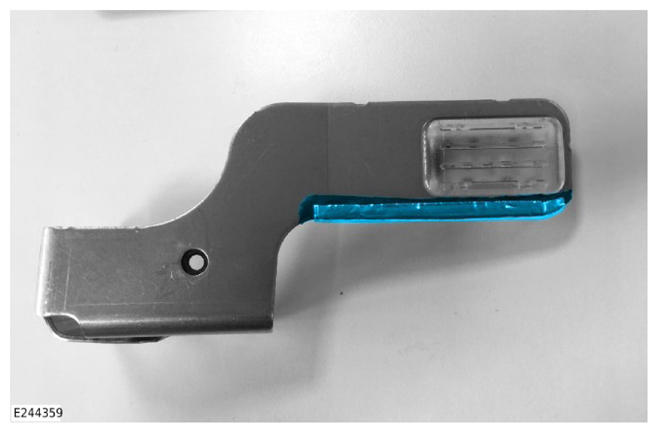

Install the butyl patch to the footwell lamp bracket as shown.
NOTE:
- The butyl patch should cover the area shown.
- Use the remainder of the butyl patch from step 5.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

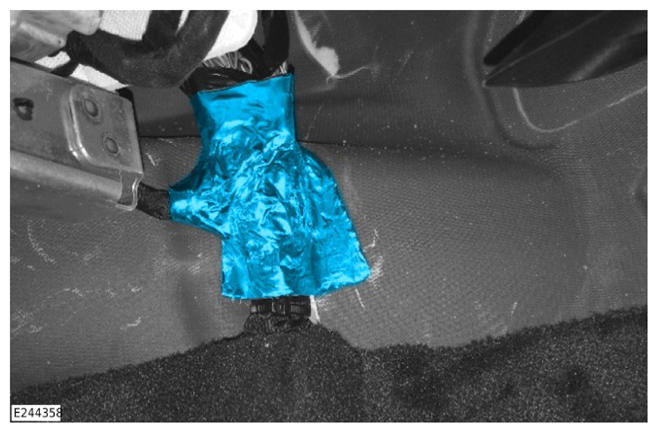

Apply butyl patch to the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the footwell lamp bracket.

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the footwell lamp electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the instrument panel lower trim panel.

Torque : 1.5 Nm
