Air Suspension Overlay

NOTE:
  • This repair applies to L320/LS, L405/LG and L494/LW models only.
  • Some variation in the illustrations may occur, but the essential information is always correct.

If after diagnosis the height sensor requires replacement and the area of wiring damage is localized to the height sensor connector, this overlay harness should be used,

  1. Disconnect the battery ground cable. For additional information, refer to the appropriate service information.
  2. Disconnect the damaged height sensor electrical connector.

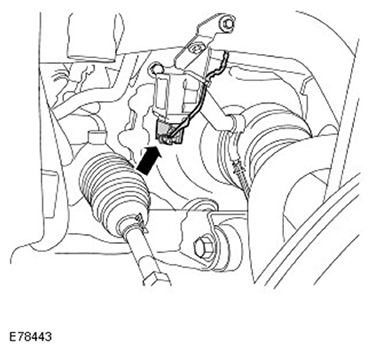

    G11593391Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. Unclip a sufficient length of the wiring harness to allow easy access during the repair.

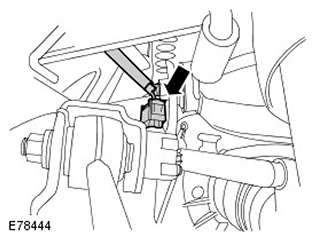

    G11593392Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. Remove the wiring harness insulation as required.
    NOTE:
    • It is advisable to cut only 1 of the wires at a time and to stagger each joint to allow easier insulation.
    • The colours of the overlay harness may vary.
  5. Cut the wire on the vehicle harness leading to cavity 1 of the height sensor connector in a suitable position. Then remove 10 mm (0.39 inch) of insulation. For connector location and pin identification, refer to the relevant connector:
    • L320 - C1696/7/8/9
    • L405/L494 - C1CD10/11/12/13

    In the Connector Details section of the relevant Electrical Library.

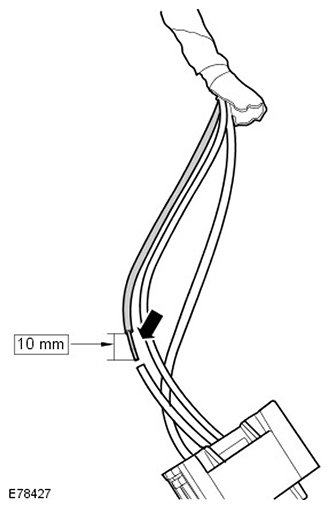

    G11593393Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. Slide over this wire a section of heat shrink sleeving.

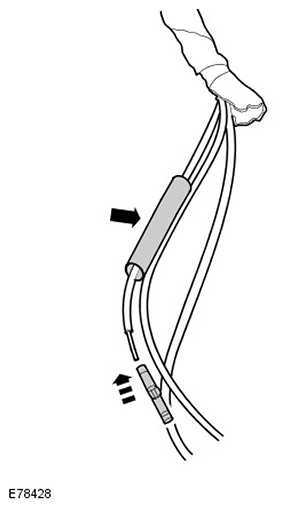

    G11593394Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. Using the inline connector supplied and the correct crimping tool set to the correct jaw size from the harness repair kit, crimp the connector to the wire.
    NOTE: The overlay harness should be cut so that there is no additional length added to the overall length after repair.
  8. Select the appropriate wire on the overlay harness that also goes to cavity 1 of the new connector. Cut the wire to the correct length and remove 10 mm (0.39 inch) of insulation.

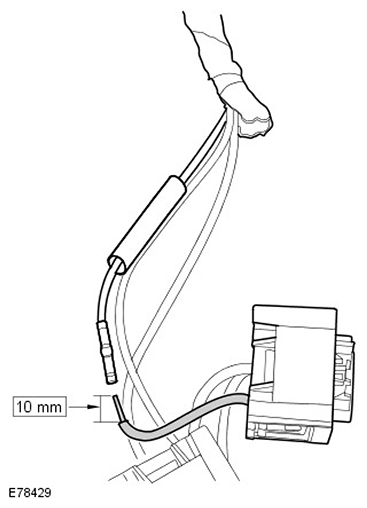

    G11593395Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. Insert the overlay wire into the connector and crimp in place.
    CAUTION: Care must be taken when using the hot air applicator to avoid damage to surrounding areas.
  10. Slide the heatshrink over the connector and using a hot air applicator carefully apply the heat until the glue appears at both ends.

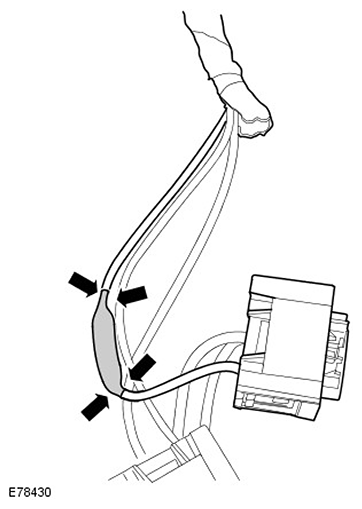

    G11593396Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. Do the same process for the wires in cavities 4 and 5 of the connector. For connector location and pin identification, refer to the relevant connector:
    • L320 - C1696/7/8/9
    • L405/L494 - C1CD10/11/12/13

    In the Connector Details section of the relevant Electrical Library.

  12. Discard the damaged connector/section of the harness.
  13. Add suitable harness repair tape to the repaired area to within 10 mm (0.39 inch) of the new connector to complete the repair.

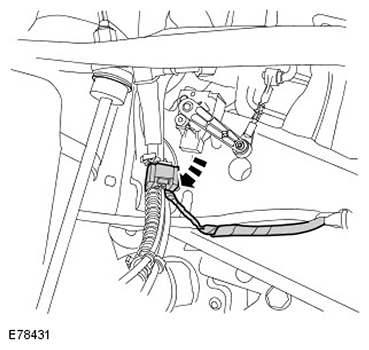

    G11593397Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  14. Correctly route/secure the harness and connect the new connector to the height sensor.
  15. Connect the battery ground cable. For additional information, refer to the appropriate service information.
  16. Clear any Diagnostic Trouble Codes (DTC) set in the Chassis Control Module (CHCM) using JLR  approved diagnostic equipment and confirm correct operation of the system.
