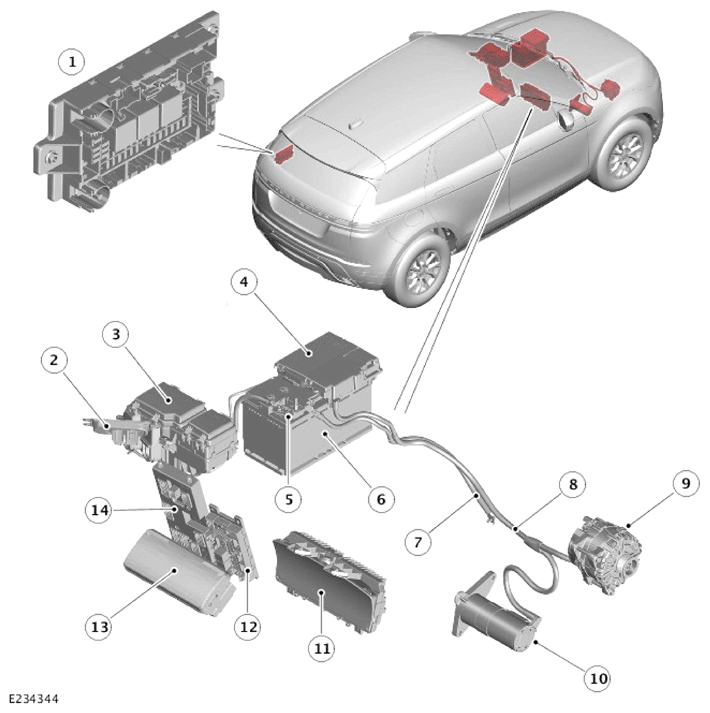

Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) petrol engine vehicle is shown, Left Hand Drive (LHD) and diesel engine vehicles are similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear Junction Box (RJB) |
| 2 | Voltage Quality Module (VQM) (vehicle with engine stop/start only) |
| 3 | Engine Junction Box (EJB) |
| 4 | Battery Junction Box (BJB) |
| 5 | Battery Monitoring System (BMS) control module |
| 6 | Startup battery |
| 7 | Ground cable (quantity 2) |
| 8 | Startup battery cable (positive) for the generator and starter motor |
| 9 | Generator |
| 10 | Starter motor |
| 11 | Instrument Cluster (IC) |
| 12 | Passenger Junction Box (PJB) |
| 13 | Touchscreen (TS) or Interactive Display Module 'A' (IDMA) |
| 14 | Body Control Module/Gateway Module (BCM/GWM) |
