Component Location
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV
system on the vehicle is powered down.

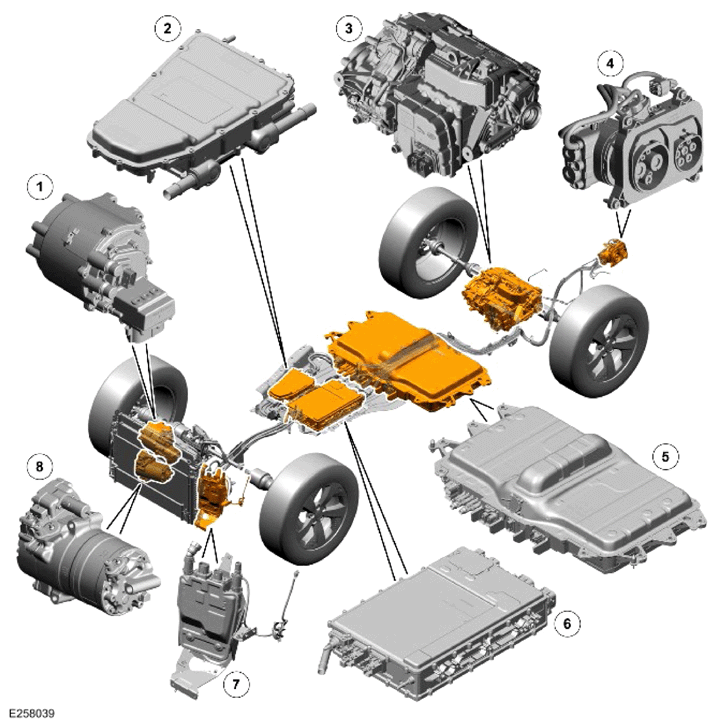

Component Location - 1 of 2 - Components
| ITEM | DESCRIPTION |
|---|---|
| 1 | Belt Integrated Starter Generator (BISG) |
| 2 | BISG inverter |
| 3 | Electric Rear Axle Drive (eRAD) |
| 4 | Charging socket |
| 5 | Plug-in Hybrid Electric Vehicle (PHEV) battery |
| 6 | High Voltage Integrated Box |
| 7 | HV interior heater |
| 8 | HV Alternating Current (AC) Air Conditioning (A/C) compressor |

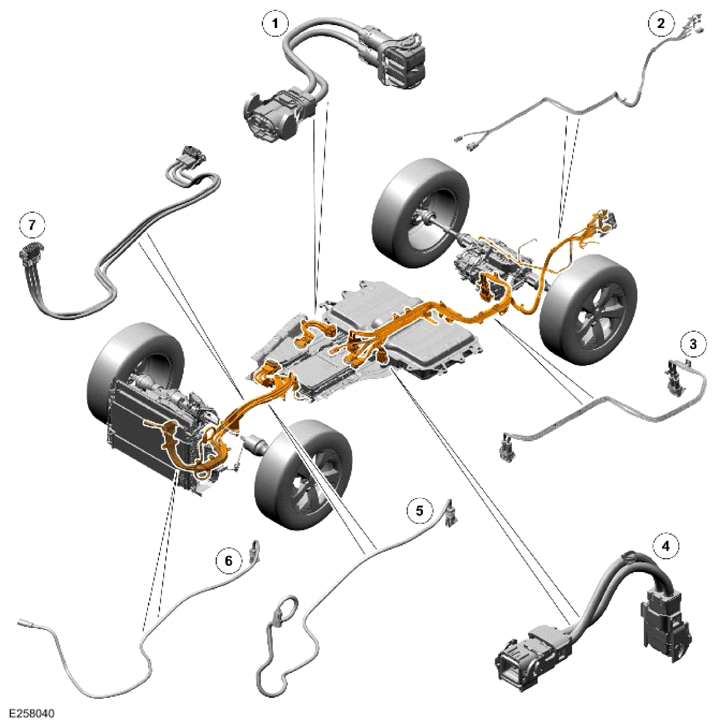

Component Location - 2 of 2 - High Voltage Wiring Harnesses
| ITEM | DESCRIPTION |
|---|---|
| 1 | HV harness from the HV BISG to the PHEV battery |
| 2 | HV harness from the charging port to the High Voltage Integrated Box |
| 3 | HV harness from the PHEV battery to the eRAD inverter |
| 4 | HV harness from the PHEV battery to the High Voltage Integrated Box |
| 5 | HV harness from the High Voltage Integrated Box to the HV interior heater |
| 6 | HV harness from the High Voltage Integrated Box to the HV electric AC A/C compressor |
| 7 | HV harness from the HV BISG to the HV BISG inverter |
