Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) petrol engine vehicle is shown, Left Hand Drive (LHD) and diesel engine vehicles are similar.

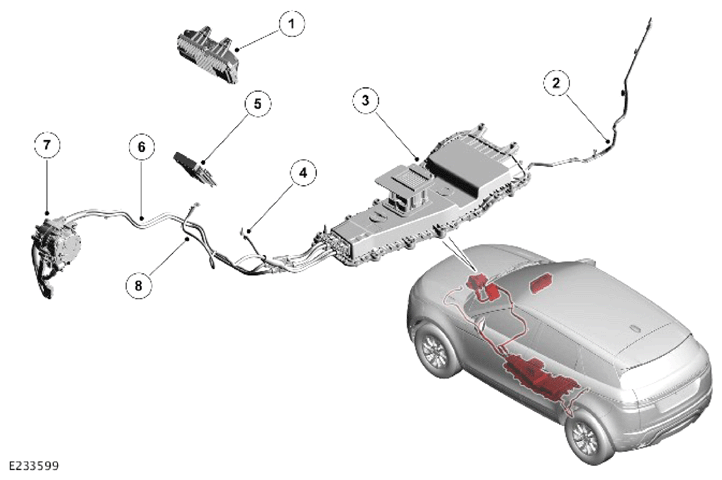

| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Mild Hybrid Electric Vehicle (MHEV) battery breather pipe |
| 3 | MHEV battery housing |
| 4 | Ground cable |
| 5 | Powertrain Control Module (PCM) |
| 6 | MHEV battery cables |
| 7 | Belt Integrated Starter Generator (BISG) |
| 8 | Startup battery positive cable |
