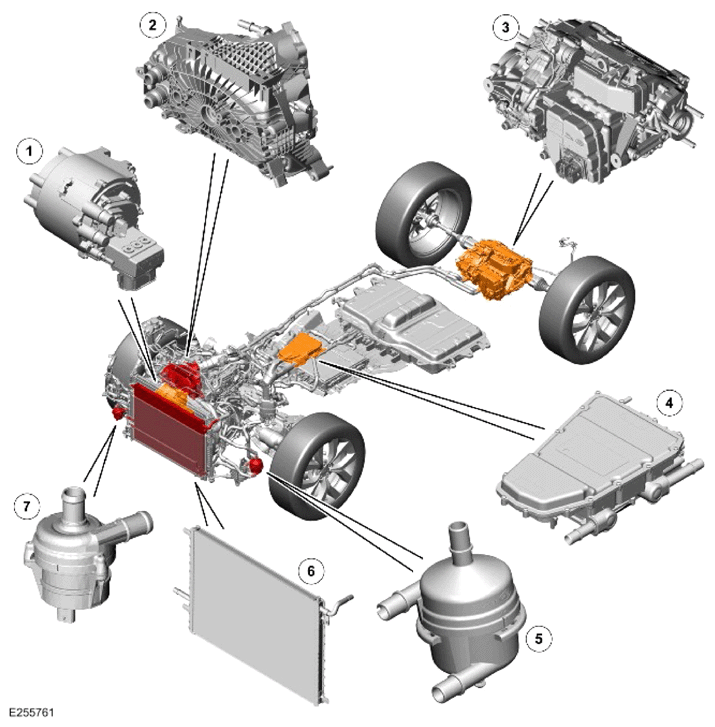

Component Location
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV
system on the vehicle is powered down.
NOTE:
Right Hand Drive (RHD) vehicle shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Belt Integrated Starter Generator (BISG) |
| 2 | Charge air cooler |
| 3 | Electric Rear Axle Drive (eRAD) |
| 4 | BISG inverter |
| 5 | Swirl pot |
| 6 | eRAD radiator |
| 7 | eRAD coolant pump |
