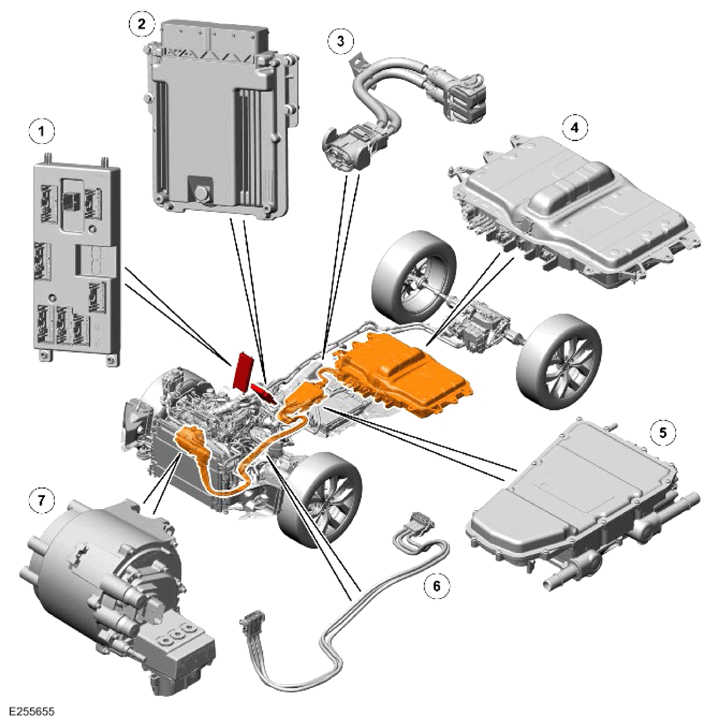

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | High Voltage (HV) Direct Current (DC) harness to the Plug-in Hybrid Electric Vehicle (PHEV) battery |
| 4 | PHEV battery |
| 5 | HV Belt Integrated Starter Generator (BISG) inverter |
| 6 | 3 phase HV Alternating Current (AC) harness to the HV BISG motor |
| 7 | HV BISG motor |
