Component Location

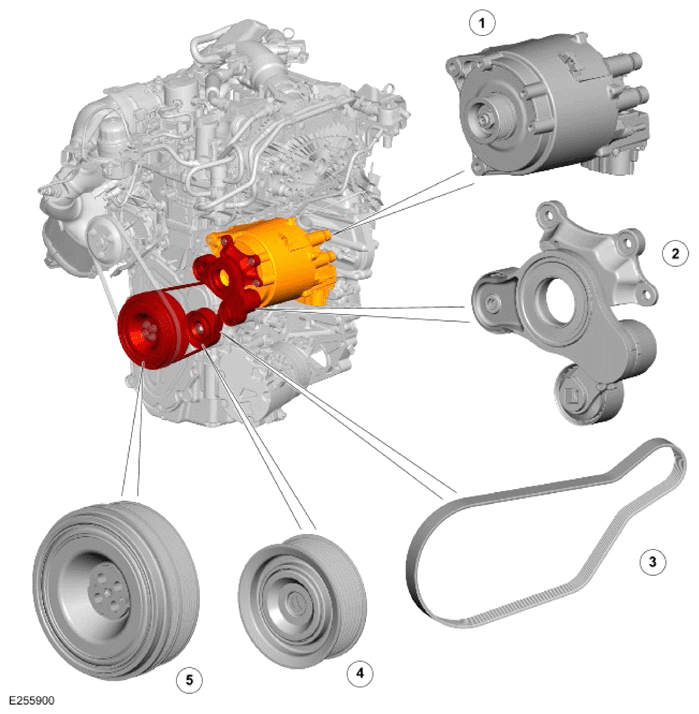

G14455126Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Belt Integrated Starter Generator (BISG)
2 BISG  drive belt tensioner
3 BISG  drive belt
4 BISG  drive belt idler pulley
5 Crankshaft pulley
