Parking Brake And Actuation (G2340101)
Torque Specifications
NOTE:
Numbers with a green background are a single use component.

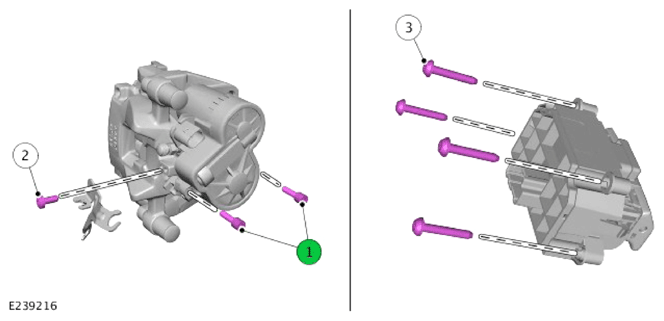

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Electric Park Brake (EPB) actuator bolts |
9 |
- |
80 |
| 2 |
Wiring harness mounting bracket bolt |
10 |
7 |
- |
| 3 |
EPB switch mounting bolts |
1.5 |
- |
13 |
