Electric Park Brake Switch (G2309453): Removal

NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  2. Remove the instrument panel lower trim panel.

    Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .

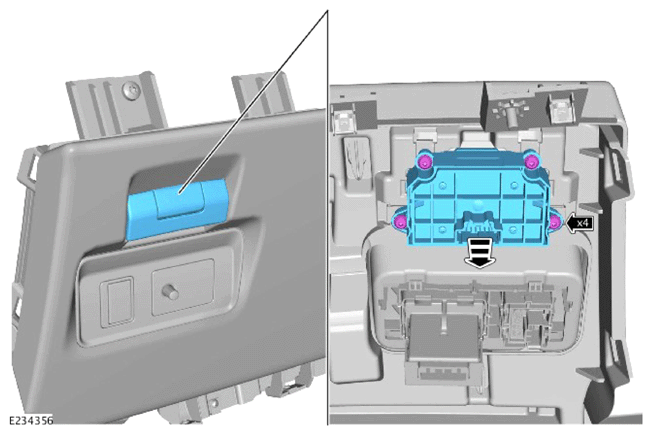

  3. G14428292Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 screws.
    • Remove the Electric Park Brake (EPB) switch.
