Electric Park Brake Actuator (G2319503): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.

Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and set Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the diagnostic equipment is not available.

Activate the service mode of the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .

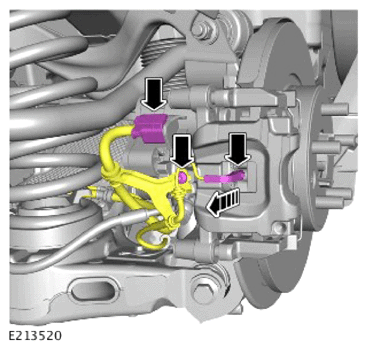

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the brake pad wear sensor.
- Disconnect the EPB electrical connector.
- Remove the bolt and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the EPB actuator.
- Remove and discard the O-ring seal.
