Component Location
NOTE:
Left Hand Drive (LHD) vehicle shown, Right Hand Drive (RHD) vehicle is similar

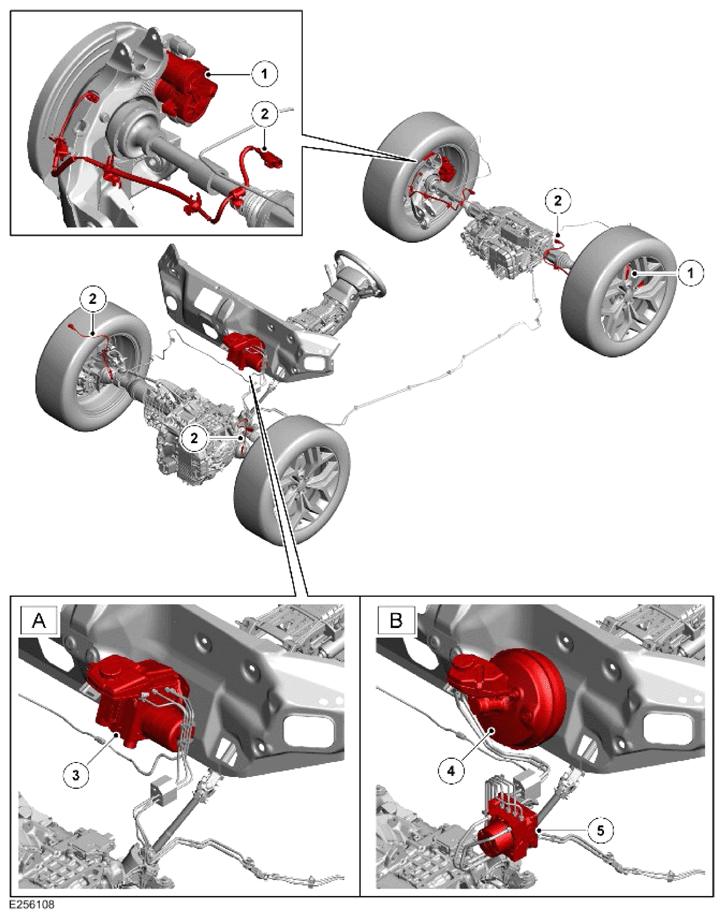

Component Location - 1 of 2
| ITEM | DESCRIPTION |
|---|---|
| A | Integrated Power Brake |
| B | Vacuum reservoir and Anti-Lock Brake System Control Module (ABS) (non Plug-in Hybrid Electric Vehicle (PHEV) and Mild Hybrid Electric Vehicle (MHEV) only) |
| 1 | Electric Park Brake (EPB) actuator (quantity 2) |
| 2 | Wheel speed sensor (quantity 4) |
| 3 | Integrated Power Brake |
| 4 | Vacuum reservoir (non-electric vehicles only) |
| 5 | ABS and Hydraulic Control Unit (non-electric vehicles only) |
| A | Integrated Power Brake |
| B | Vacuum reservoir and ABS (non-electric vehicles only) |

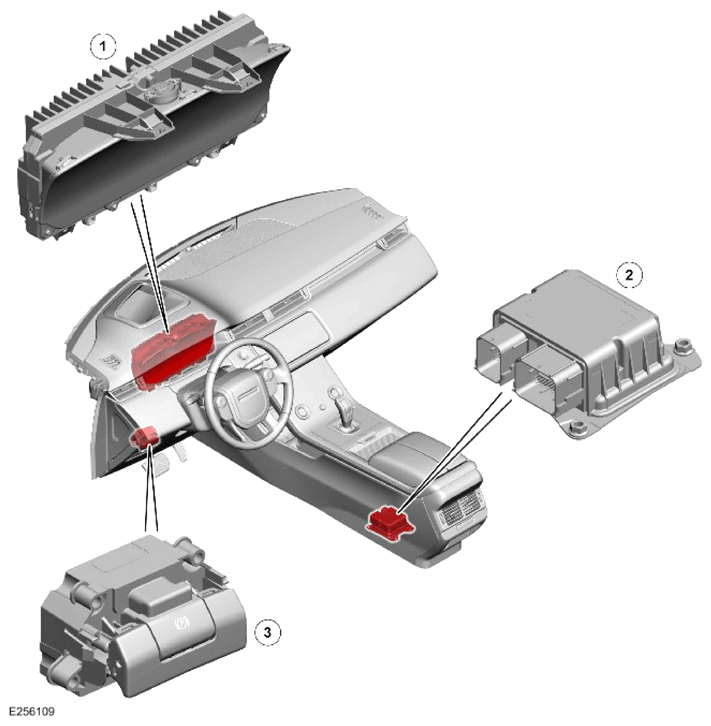

Component Location - 2 of 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Restraints Control Module (RCM) |
| 3 | EPB switch |
