Rear Disc Brake (G2320836)

Torque Specifications

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

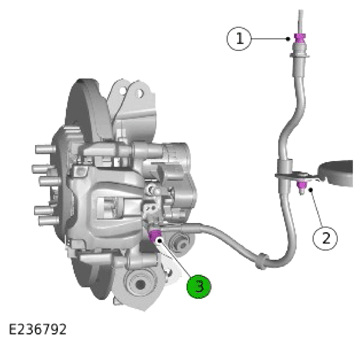

1	Brake hose pipe union	15.5		11		-
2	Brake hose banjo bolt	35		26		-
3	Brake hose bracket retaining nut	10		7		-

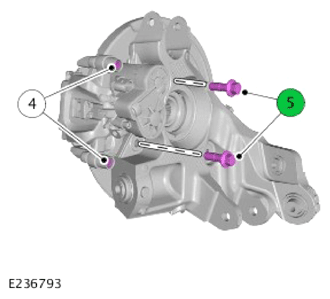

4	Brake caliper guide pin bolts	30		22		-
5	Brake caliper carrier retaining bolts	110		81		-

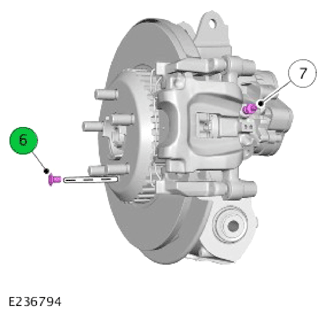

6	Brake disc retaining bolt	10		7		-
7	Brake caliper bleeding screw	15		11		-
