Brake Pads (G2309417): Installation

  1. WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
    G14428216Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Clean the brake caliper housing and anchor plate using brake cleaning fluid.

    Material: Brake Cleaner (3U7J-2C410-AA)

  2. CAUTION: Damaged components must be replaced.
    G14428217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Inspect the caliper piston and slide pin seals for damage.

  3. CAUTION: As the piston is pushed back into the caliper housing, the brake fluid level in the reservoir will rise. Do not allow the reservoir to overflow.
    G14428114Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 7 retainers.
    • Remove the startup battery cover and brake fluid reservoir cover.
    • Remove the brake fluid reservoir cap, and check the brake fluid level.
    • Use a suitable syringe to remove the excessive brake fluid to avoid the brake fluid reservoir to overflow.

      General Equipment: Oil syringe

  4. G14428239Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to fully retract the brake caliper piston into brake caliper housing.

    Special Tool(s): 206-080

  5. NOTE: Make sure that the anti-rattle spring is installed to the position noted prior to removal.

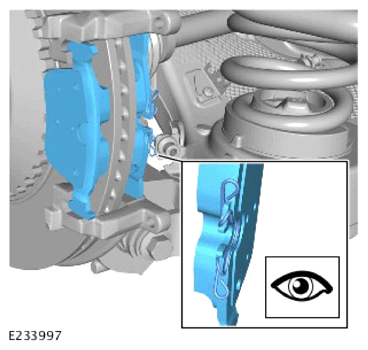

    G14428220Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the anti-rattle spring.
    • Install the rear brake pads.

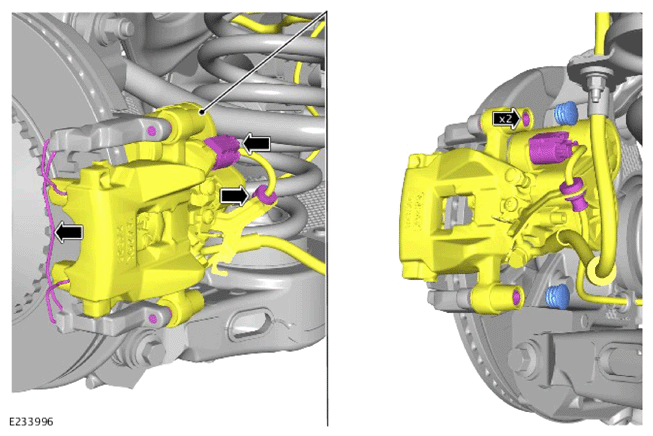

  6. G14428219Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake caliper.
    • Install and tighten the 2 brake caliper guide pins.

      Torque  : 30 Nm

    • Connect and secure the EPB electrical connector.
    • Install the 2 dust caps.
    • Install the anti-rattle spring.
  7. Repeat the above procedure for the other side.
  8. NOTE:
    • Right hand side only.
    • If new brake pads are installed make sure that a new brake pad wear sensor is installed.

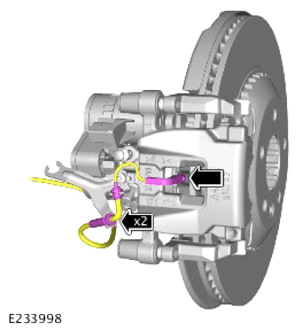

    G14428211Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the brake pad wear sensor to the brake pad.

    Renew Part: Brake pad wear sensor cable Quantity: 1 .

  9. G14428119Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid.

      Refer to: SPECIFICATIONS .

    • Install the brake fluid reservoir cap.
  10. CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
    G14428114Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Check and clean the area around the brake fluid reservoir cap, if necessary.
    • Install the startup battery cover.
    • Secure the 7 retainers.
  11. Install the rear wheels and tires.

    Refer to: WHEEL AND TIRE .

  12. Calibrate the EPB using the Jaguar Land Rover (JLR) approved diagnostic equipment.

    General Equipment: Jaguar Land Rover approved diagnostic equipment

  13. NOTE: This step is only required if the diagnostic tool is not available.

    Deactivate the service mode function of the EPB.

    Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
