Brake Hose (G2469700): Removal

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
Remove the rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

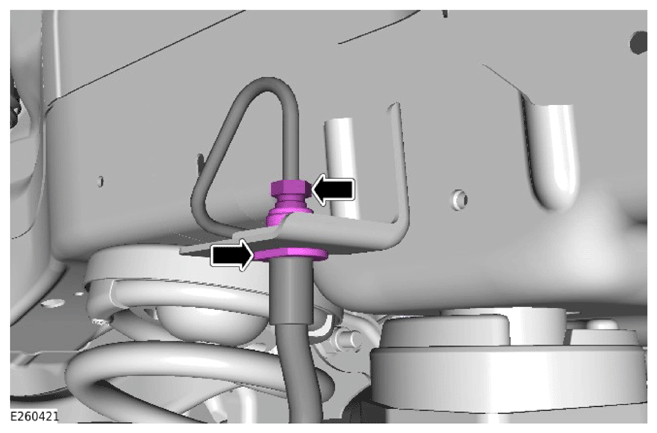

Disconnect the brake hose union.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

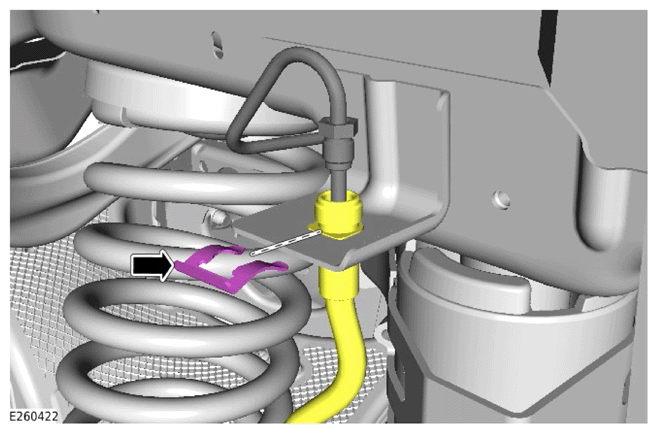

- Remove the brake hose clip.
- Release the brake hose from the body bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

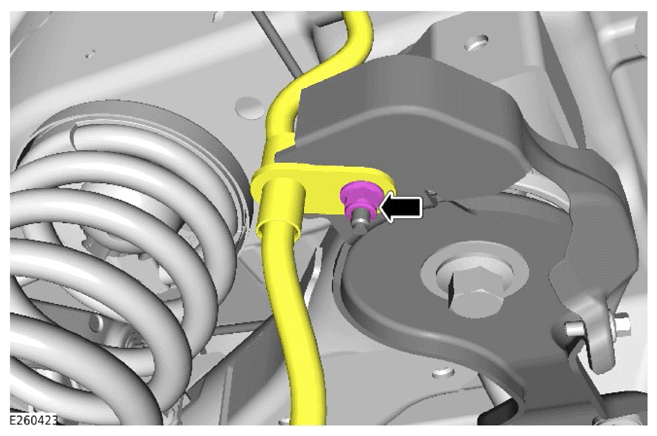

Remove the brake hose to subframe bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

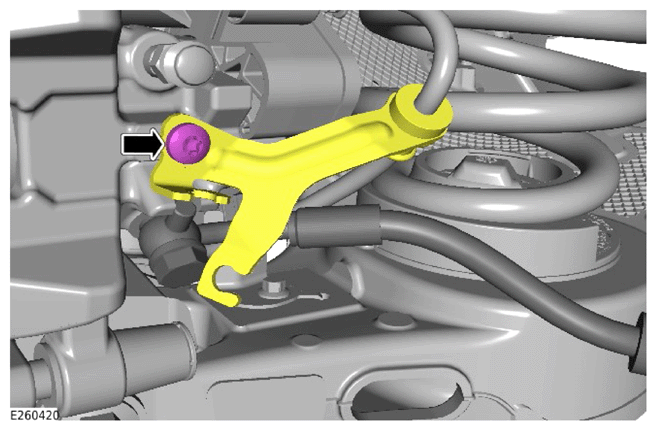

- Remove the bolt.
- Reposition the wiring harness bracket to allow access to the brake hose banjo bolt.
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

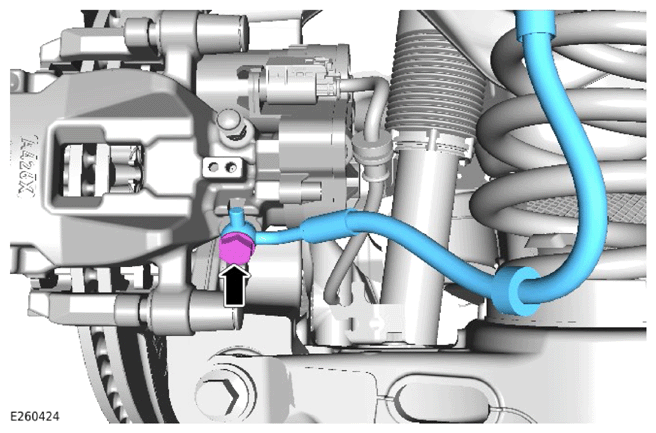

- Disconnect the brake hose from the brake caliper.
- Remove and discard the brake hose.
