Brake Caliper Anchor Plate (G2309414): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the JLR approved diagnostic equipment is not available.

Activate the service mode function of the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE .
NOTE: Right hand side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the brake pad wear sensor.
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect and release the EPB electrical connector.
- Remove the anti-rattle spring.
- Remove the 2 dust caps.
- Remove the 2 caliper guide pins.
- Using a suitable tie strap, secure the caliper to one side.
NOTE: Note the orientation of the anti-rattle spring prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the anti-rattle spring.
- Remove the rear brake pads.

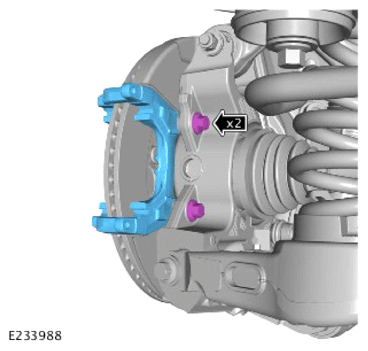

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove the brake caliper anchor plate.
