Brake Caliper - Vehicles With: PHEV (G2740567): Removal

CAUTION:

If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
If the brake hose banjo bolt has been loosened or removed, a new brake hose assembly must be installed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
The flexible brake hose with washers and the banjo bolt is only available as an assembly.
Left side illustration shown, Right side is similar.

- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Set the Electric Park Brake (EPB) to the maintenance position.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel and tire assembly.
Refer to: WHEEL AND TIRE .
Remove the rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the brake pad wear sensor.
NOTE: Note the orientation of the brake hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

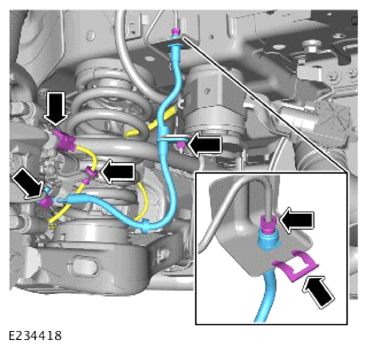

- Disconnect and release the EPB actuator electrical connector.
- Disconnect the brake pipe union.
- Remove the brake hose bracket retaining nut and banjo bolt.
- Remove the retaining clip.
- Remove and discard the brake hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

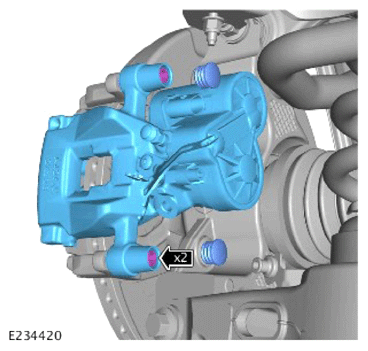

- Remove the 2 dust caps.
- Remove the 2 brake caliper slide pins.
- Remove the brake caliper.
NOTE: Only do this step if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove the EPB actuator.
- Remove and discard the O-ring seal.
