Rear Brake Discs

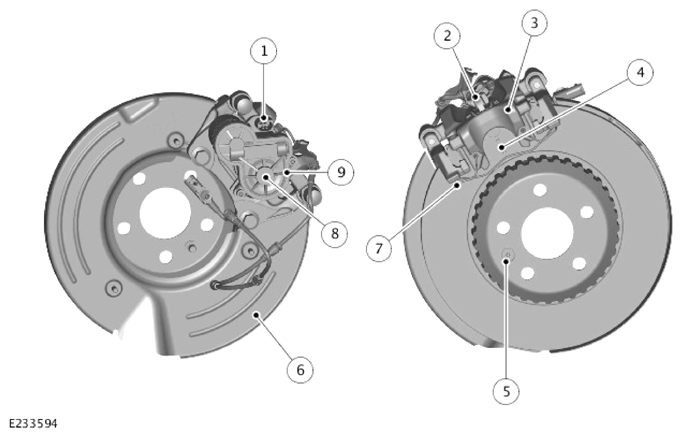

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connector |
| 2 | Brake pad wear indicator |
| 3 | Brake calliper |
| 4 | Brake pad |
| 5 | Disc retaining screw |
| 6 | Dust shield |
| 7 | Anti-rattle spring |
| 8 | Electric park brake actuator |
| 9 | Hydraulic hose connection |
NOTE:
The brake disc retaining screw and the brake caliper to knuckle bolts are a single use fixing.
The brake disc is retained on the wheel hub by 1 brake disc retaining screw and the wheel nuts. Each caliper is mounted to the rear wheel knuckle with 2 bolts.
Only the 17 inch diameter brake disc are manufactured with ventilation channels, allowing the disc to achieve high levels of thermal stability even during severe braking.
The brake disc is cooled as the forward motion of the vehicle draws air through the ventilation channels, and across the surfaces of the brake disc.
The brake discs are a lightweight technology saving 1.2 kg per corner compared to conventional technology. This offers improved vehicle handling and fuel economy.
