Component Location

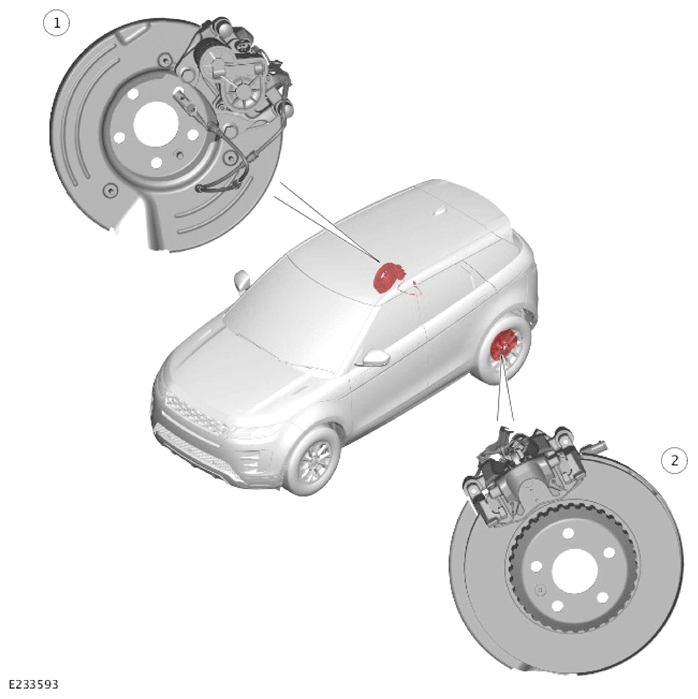

G14428208Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Rear right brake system with brake pad wear sensor
2 Rear left brake system
