Power Brake Actuation (G2340103)
General specification
NOTE:
Numbers with a green background are a single use component.
| COMPONENT TORQUE LOCATION |
  Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

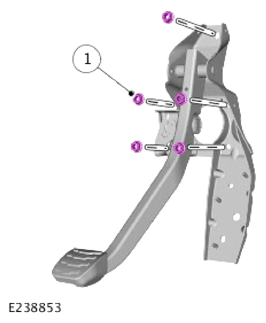

Brake pedal bracket retaining nuts |
25 |
18 |
- |
| 2 |

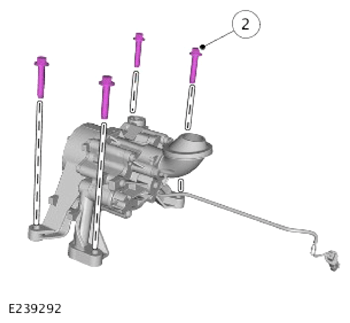

Variable flow oil pump with integral vacuum pump retaining bolts |
25 |
18 |
- |
