Brake Booster - Left Hand Drive, Vehicles With: MHEV/Non-Electric Vehicles (G2313163): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the instrument panel lower trim panel.
Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .
Remove the brake master cylinder.
Refer to: BRAKE MASTER CYLINDER - LEFT HAND DRIVE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

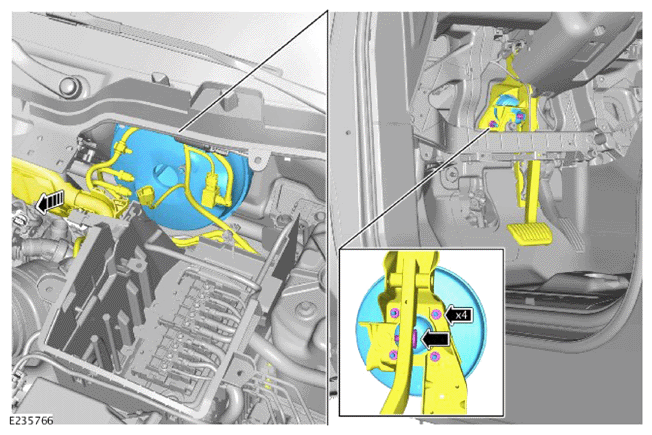

- Release the brake booster vacuum sensor.
- Position the wiring harness to one side.
- Remove the 4 nuts.
- Remove and discard the brake booster to brake pedal pin.
- Position the bulkhead panel and remove the brake booster.
