Brake Pedal And Bracket (G2320134): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the instrument panel lower trim panel.
Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .
Remove the accelerator pedal.
Refer to: ACCELERATOR PEDAL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

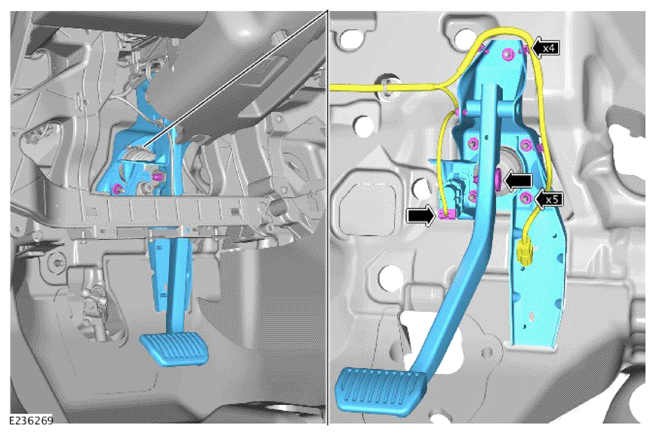

- Release the 4 clips.
- Disconnect the electrical connector.
- Remove and discard the brake pedal to brake booster pin.
- Remove the 5 nuts.
- Remove the brake pedal assembly.
