Brake Pedal And Bracket (G2320134): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

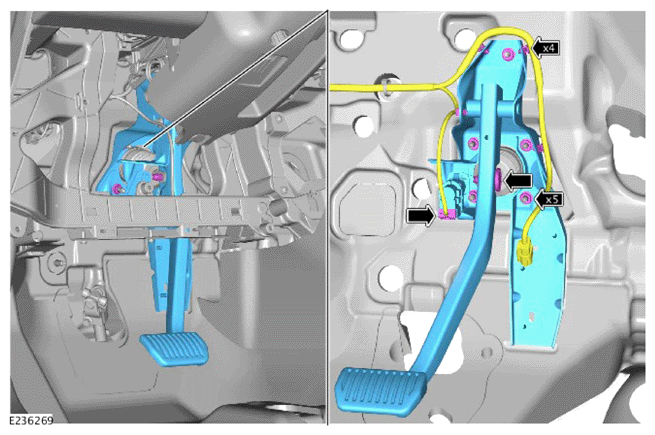

- Install the brake pedal assembly.
- Install and tighten the 5 nuts.
  Torque : 25 Nm
- Connect the electrical connector.
- Secure the 4 clips.
- Install the new brake pedal clevis pin.
  Renew Part: Brake booster to brake pedal pin Quantity: 1 .
Install the accelerator pedal.
Refer to: ACCELERATOR PEDAL .
Install the instrument panel lower trim panel.
Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .
