Brake Master Cylinder - Left Hand Drive (G2309371): Removal

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Remove the startup battery tray.
Refer to: STARTUP BATTERY TRAY .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the brake fluid reservoir cap.
- Use a suitable syringe to remove the brake fluid from the brake fluid reservoir.
  General Equipment: Oil syringe
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

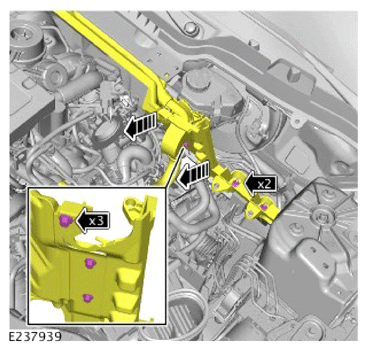

- Remove the 5 bolts.
- Reposition the secondary bulkhead panel assembly to get access to the brake master cylinder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

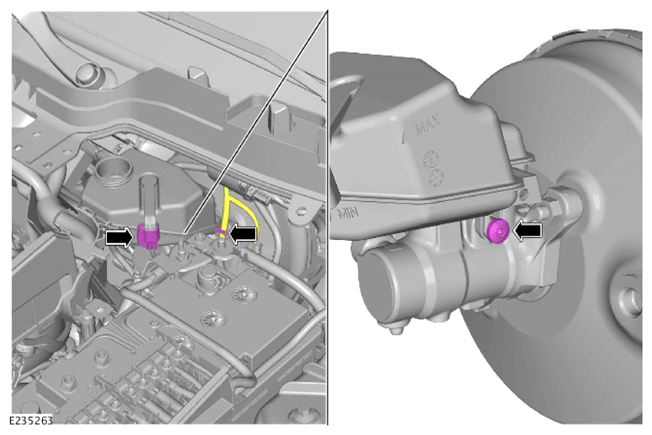

- Disconnect the electrical connector.
- Release the clip.
- Remove the screw.
The following step(s) applies to:

Vehicles with manual transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

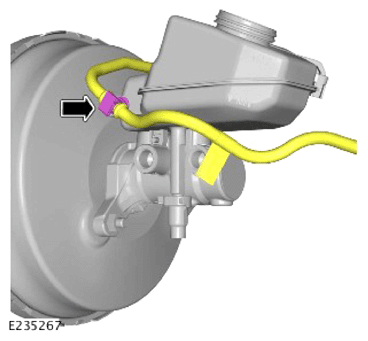

- Carefully release the clip.
- Disconnect the clutch master cylinder supply line.
The following step(s) applies to:

Vehicles with automatic transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

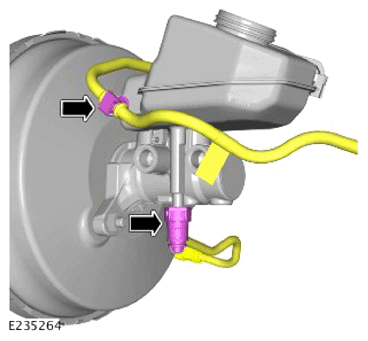

Carefully release the clip.

The following step(s) applies to:

All vehicles
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

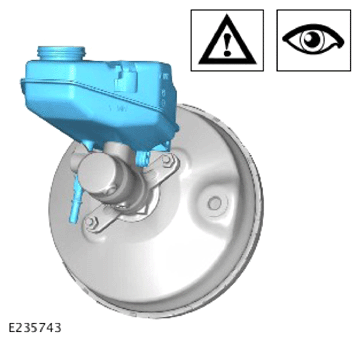

Remove the brake fluid reservoir.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

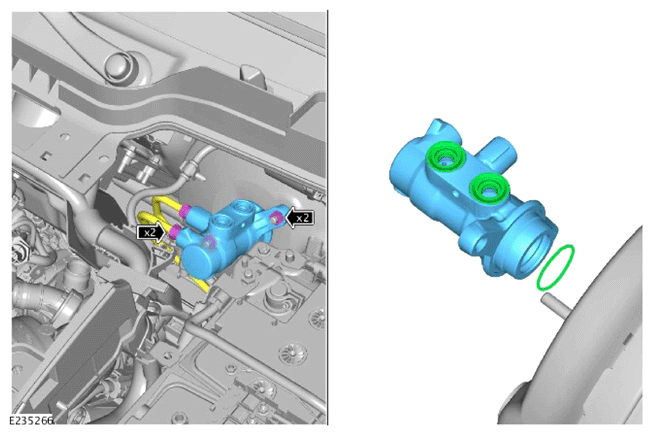

- Disconnect the 2 brake pipe unions.
- Remove and discard the 2 nuts.
- Remove the brake master cylinder.
- Remove and discard the seals.
