Front Disc Brake (G2309342)

Torque Specifications

NOTE:

Vehicles with 325 mm front brake discs.
Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

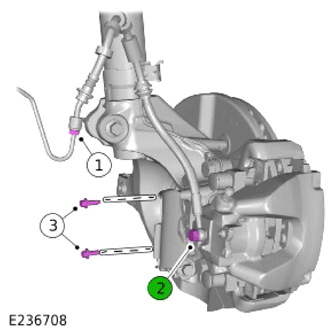

1	Brake hose pipe union	15.5		11		-
2	Brake hose banjo bolt	35		26		-
3	Brake cooling air duct retaining bolts	10		7		-

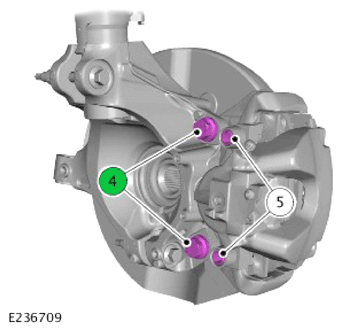

4	Brake caliper carrier plate retaining bolts	110		81		-
5	Brake caliper guide pin bolts	58		43		-

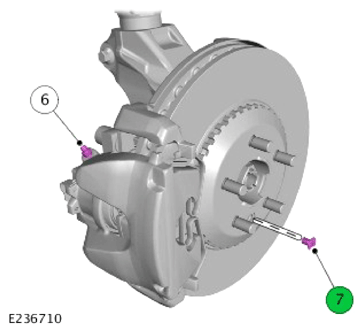

6	Brake caliper bleeding screw	15		11		-
7	Brake disc retaining bolt	10		7		-

NOTE: Vehicles with 350 mm front brake discs.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

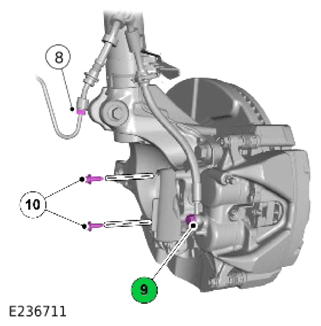

8	Brake hose pipe union	15.5		11		-
9	Brake hose banjo bolt	35		26		-
10	Brake cooling air duct retaining bolts	10		7		-

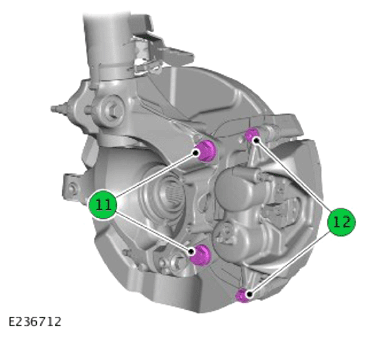

11	Brake caliper carrier plate retaining bolts	110 + 120°		81+ 120°		-
12	Brake caliper guide pin bolts	35		26		-

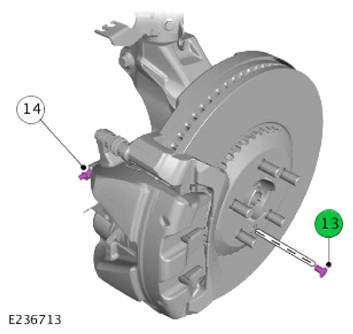

13	Brake disc retaining bolt	10		7		-
14	Brake caliper bleeding screw	15		11		-
