Brake Pads - Vehicles With: PHEV (G2740579): Removal

WARNING: Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
Left side illustration shown, Right side is similar.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove both the front wheel and tires.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

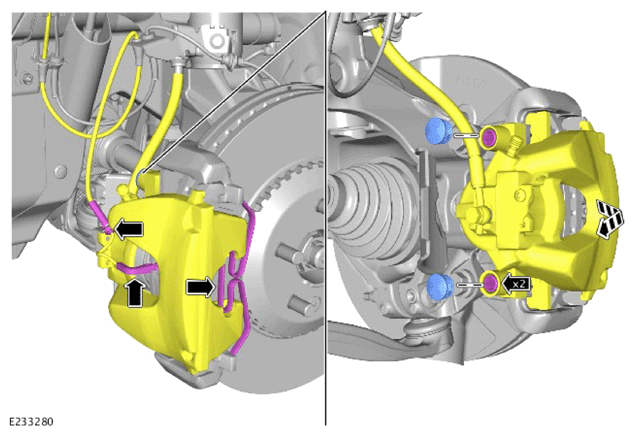

- Remove the brake caliper anti-rattle spring.
- Disconnect and release the brake pad wear sensor.
- Remove the 2 dust caps.
- Remove the 2 caliper guide pins.
- Using a suitable tie strap, secure the brake caliper to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the brake pad from the brake caliper.
- Remove the 2 brake pads.
Repeat the procedure for the other side.
